View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage45 V
Continuous drain current51 ~ 208 A
On-resistance1.2 mΩMax · 20A
Gate threshold voltage2.3 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 51A (Ta), 208A (Tc) |
| Drain to Source Voltage (Vdss) | 45 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 6.25W (Ta), 104W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |

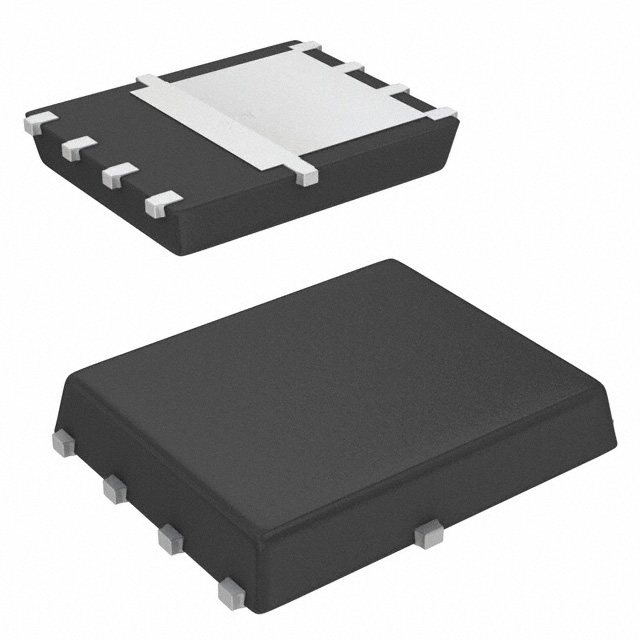

| Package / Case | PowerPAK® SO-8 |
| Supplier Device Package | PowerPAK® SO-8 |
| Other | |
| Base Product Number | SIR608 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 167 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8900 pF @ 20 V |
| Mfr | Vishay Siliconix |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Rds On (Max) @ Id, Vgs | 1.2mOhm @ 20A, 10V |
| Series | TrenchFET® Gen IV |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | +20V, -16V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
