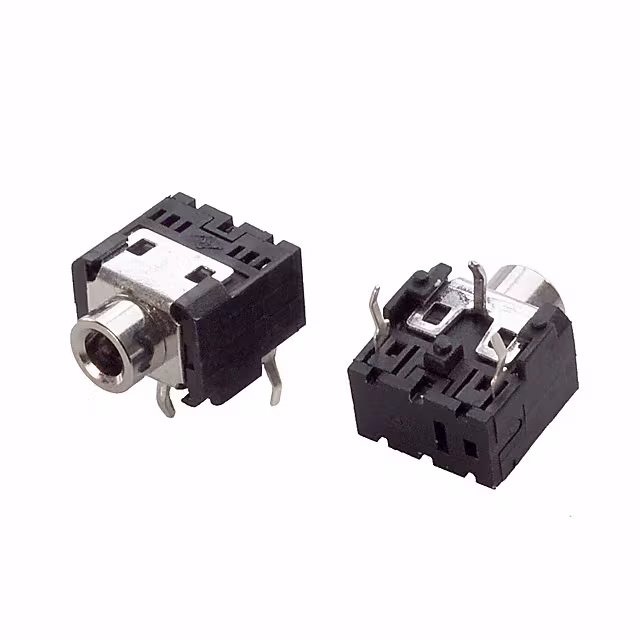

CONN JACK STEREO 3.5MM R/A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 1 A |
| Voltage - Rated | 12VDC |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -25°C~85°C |
| Package | - |
| Panel Hole Size | - |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.142" (3.60mm) |
| Base Product Number | SJ-35 |
| Body Color | Black |
| Body Material | Brass |
| Cable Opening | - |
| Connector Type | Phone Jack |
| Contact Material | Brass; Copper Alloy |
| Contact Material - Plating | Nickel |
| Features | - |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Includes | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Mfr | CUI Devices |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Product Status | Obsolete |
| Series | SJ |
| Shielding | Unshielded |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Termination | Kinked Pin |
