Cornell Dubilier Electronics (CDE)United States

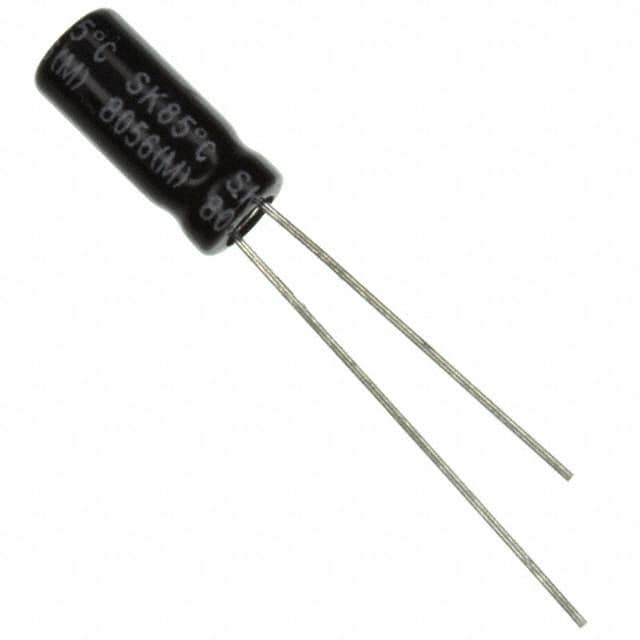

CAP ALUM 22UF 20% 25V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance22 µF
Rated voltage25 V
Tolerance20 %
ESR8.44 ΩMax
Lifetime2 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 25 V |
| AC and DC characteristics | |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Radial, Can |

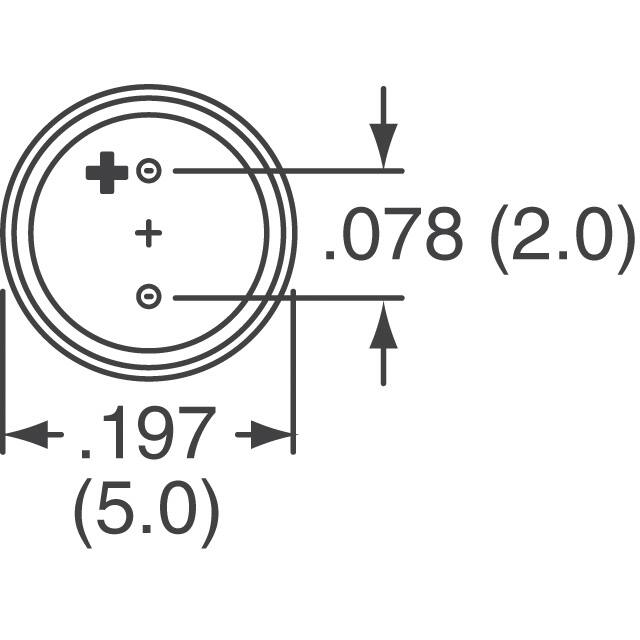

| Size / Dimension | 0.197" Dia (5.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 8.44Ohm |
| Lead Spacing | 0.079" (2.00mm) |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | SK |
| Tolerance | ±20% |
