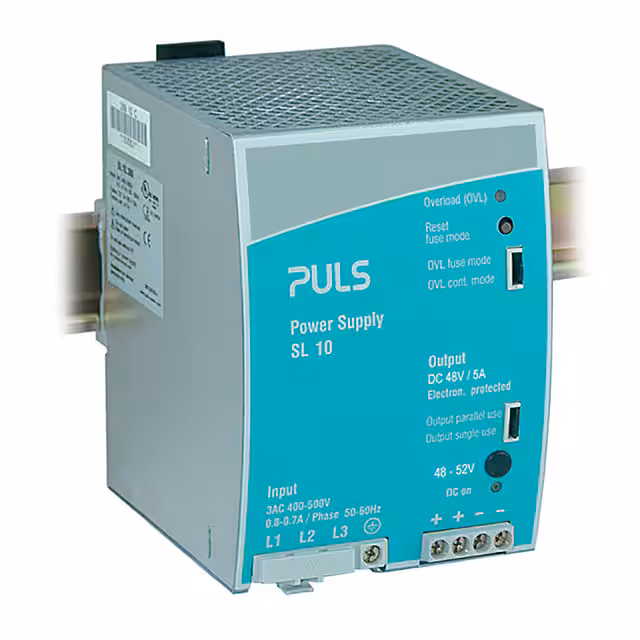

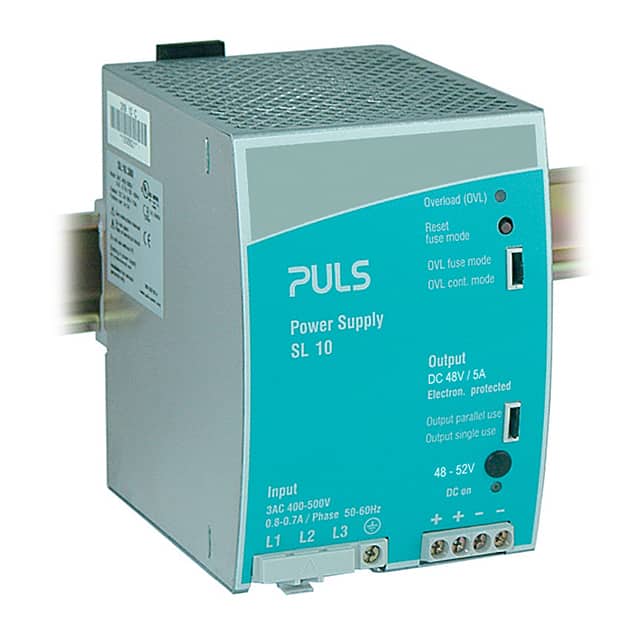

PULS, LPGermany
AC/DC CONVERTER 48V 240W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| AC Voltage - Input | 320 ~ 575 VAC (3 Phase) |
| Current - Output (Max) | 5A |
| Power (Watts) | 240W |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Operating Temperature | -25°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.61" L x 3.50" W x 4.88" H (117.0mm x 89.0mm x 124.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cULus, cURus |
| Efficiency | 93.8% |
| Features | Adjustable Output, Load Sharing |
| Input Type | AC |
| Mfr | PULS, LP |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | SilverLine (240W) |
Documents
No documents are linked to this part yet.
