Dialog Semiconductor GmbHGermany

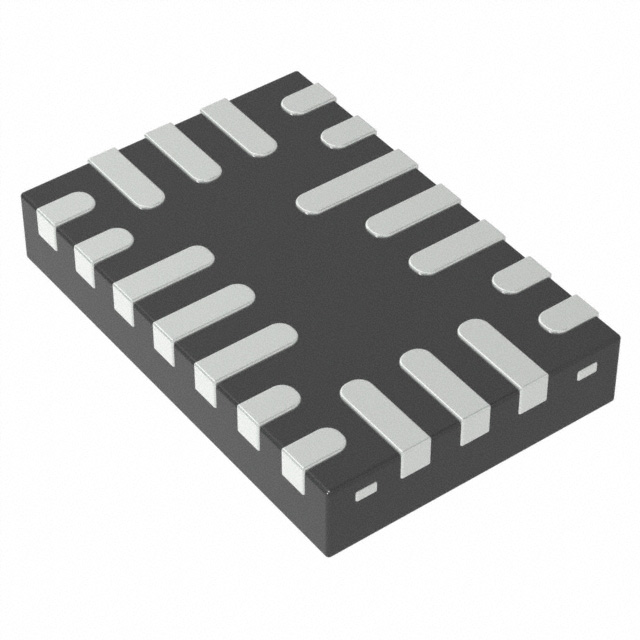

IC CMOS 4 CIRCUIT 20STQFN
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage1.71 ~ 5.5 V
Gain bandwidth product10 kHzTyp
Input offset voltage200 µVTyp
Quiescent current380 nATyp
Channels4
| Power | |
|---|---|
| Current - Input Bias | 2 pA |
| Current - Output / Channel | 10 mA |
| Current - Supply | 380nA (x4 Channels) |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 1.71 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 10 kHz |
| Slew Rate | 0.005V/µs |
| Voltage - Input Offset | 200 µV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 20-UFQFN |
| Supplier Device Package | 20-STQFN (2x3) |
| Other | |
| Amplifier Type | CMOS |
| Base Product Number | SLG88104 |
| Mfr | Dialog Semiconductor GmbH |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | - |
