MEAN WELL USA Inc.Taiwan, China

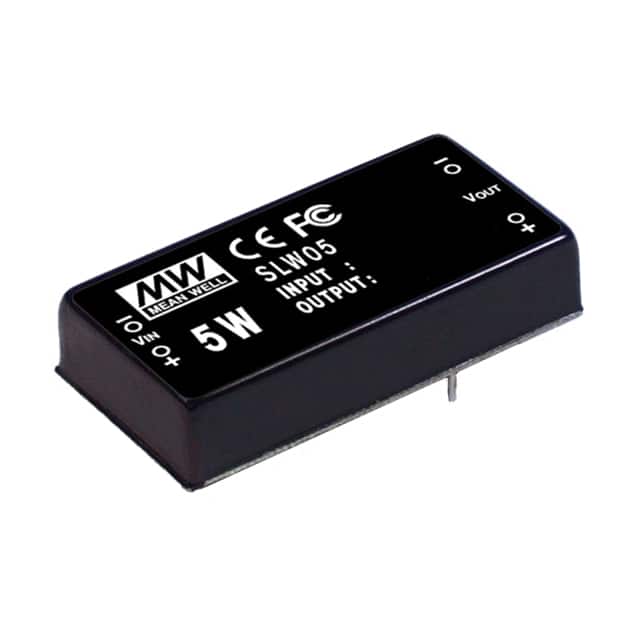

DC DC CONVERTER 12V 5W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage36 ~ 72 V
Output voltage12 V
Output current417 mAMax
Power5 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 417mA |
| Power (Watts) | 5 W |
| Voltage - Input (Max) | 72V |
| Voltage - Input (Min) | 36V |
| Voltage - Isolation | 1 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C~71°C(WithDerating) |
| Package | Tube |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | SLW05 |
| Efficiency | 83% |
| Features | OCP, SCP |
| Mfr | MEAN WELL USA Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | SLW05 (5W) |
| Type | Isolated Module |
