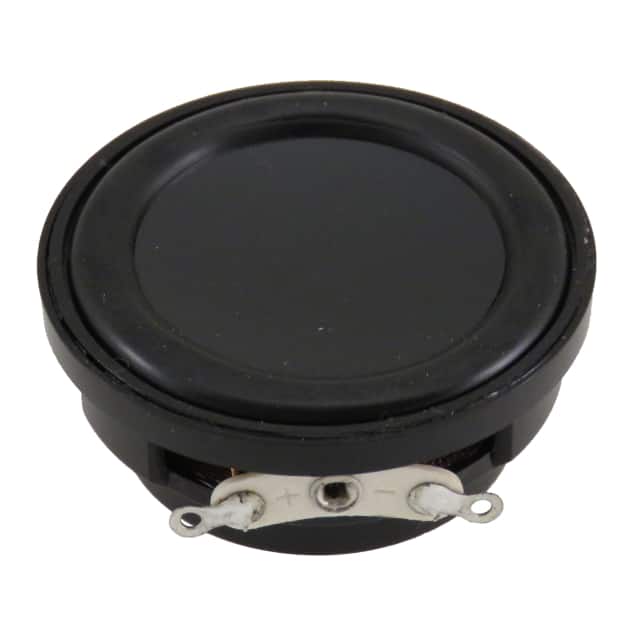

SPEAKER 4OHM 5W 180HZ 100DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 6 W |
| Power - Rated | 5 W |
| AC and DC characteristics | |
| Distortion Rating | - |
| Frequency Range | 150 Hz ~ 20 kHz |
| Frequency - Self Resonant | 180Hz |
| Impedance | 4 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Operating Temperature | -20°C~60°C |
| Package | Tray |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Other | |
| Efficiency - dBA | 100.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Mfr | DB Unlimited |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shape | Round |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
