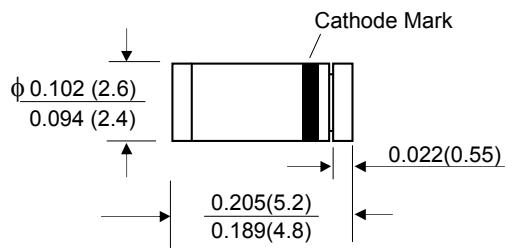

MELF (Plastic) Dimensions in i…

SM4001

DIODE GEN PURP 50V 1A MELF

SM4001 is a 1A/50V glass passivated junction single diode in MELF plastic package, featuring low forward voltage drop and high reliability for surface mount applications, RoHS compliant.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage50 V

Average rectified current1 A

Datasheet-verified parameters

15 items

Parameter	Value and test conditions	Source
Maximum Average Forward Rectified Current	1.0 A
Maximum Recurrent Peak Reverse Voltage	50 V
Maximum Forward Voltage	1.1 V at IF=1.0 A
Diode Type	Single phase, half wave, 60 Hz, resistive or inductive load
Package	MELF, Plastic
Operating and Storage Temperature Range	-55 to +150 °C
RoHS	Pb / RoHS Free
Maximum RMS Reverse Voltage	35 V
Maximum DC Blocking Voltage	50 V
Peak Forward Surge Current	30 A (8.3ms single half sine wave Superimposed on rated load)
Maximum DC Reverse Current	5.0 μA at Ta = 25 °C, 50 μA at Ta = 125 °C
Typical Thermal Resistance, Junction to Ambient	50 °C/W
Typical Junction Capacitance	15 pF (Measured at 1.0 MHz and applied reverse voltage of 4.0 V DC)
Flammability Classification Rating	UL 94 V-0
Polarity	Color band

All parameters (6)ExpandCollapse

Power
Maximum Average Forward Rectified Current	1.0 A
Maximum Forward Voltage at $I_F=1.0 A.$	1.1 V
Maximum Recurrent Peak Reverse Voltage	50 V
Peak Forward Surge Current 8.3ms single half sine wave Superimposed on rated load (JEDEC Method )	30 A
Environment and package
Case	MELF, Plastic
Operating and Storage Temperature Range	-55 to +150 °C
