Panjit International Inc.Taiwan, China

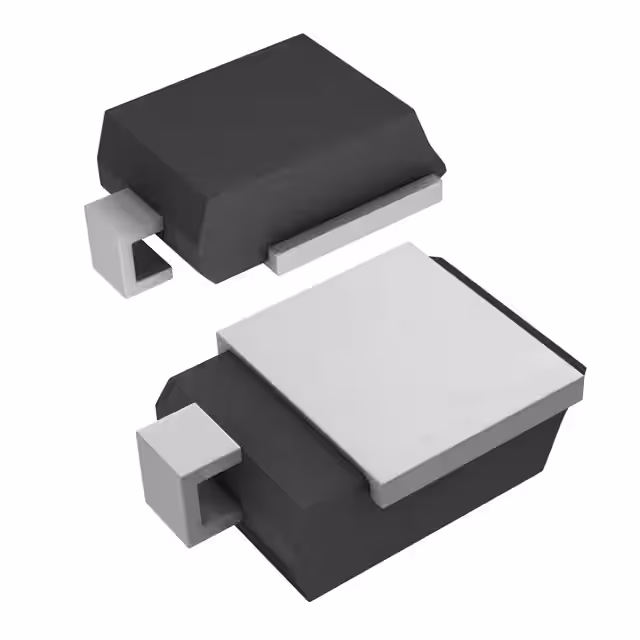

6.6KW SURFACE MOUNT TRANSIENT VO
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage26 V
Breakdown voltage28.9 V
Clamping voltage42.1 VMax
Peak pulse power6.6 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 157A |
| Power Line Protection | No |
| Power - Peak Pulse | 6600W (6.6kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Voltage - Reverse Standoff (Typ) | 26V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Other | |
| Applications | Automotive |
| Mfr | Panjit International Inc. |
| Product Status | Active |
| Series | Automotive, AEC-Q101 |
| Type | Zener |
