SMC Diode SolutionsUnited States

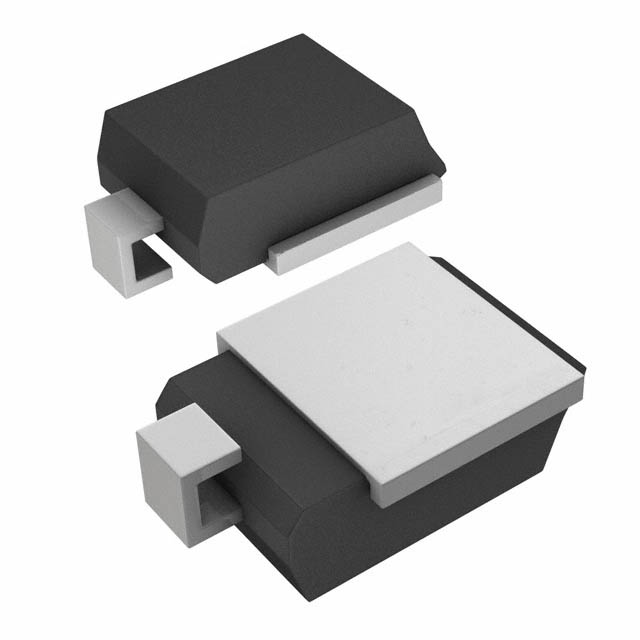

TVS DIODE 30VWM 48.4VC DO218AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage30 V
Breakdown voltage33.3 V
Clamping voltage48.4 VMax
Peak pulse power6.6 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 136A |
| Power Line Protection | No |
| Power - Peak Pulse | 6600W (6.6kW) |
| Voltage - Breakdown (Min) | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 48.4V |
| Voltage - Reverse Standoff (Typ) | 30V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | DO-218AB |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-218AB |
| Other | |
| Applications | - |
| Base Product Number | SM8S30 |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Type | Zener |
Documents
No documents are linked to this part yet.
