Hottech(合科泰)China
An electronic part for protection, which can protect the electrical equipment from the voltage spike introduced by the conductor
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Breakdown voltage(MAX) | 232 |
| Breakdown voltage(MIN) | 211 |
| Clamping voltage | 307.8 |
| Peak pulse current | 1.3 |
| Peak pulse power | 400 |
| Power Dissipation | 1 |
| Reverse leakage current | 1 |
| Working Peak Reverse Voltage | 190 |
| Environment and package | |
| Package | SMA(DO-214AC) |
| Other | |
| Datasheet | 双向 |

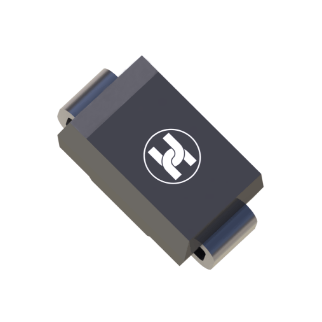

| Hottech Type | SMAJ190CA |
| Marking | VV |
