Microchip TechnologyUnited States
TVS DIODE 300VWM DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage300 V
Peak pulse power500 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | - |
| Power Line Protection | No |
| Power - Peak Pulse | 500W |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | - |
| Voltage - Reverse Standoff (Typ) | 300V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR) |

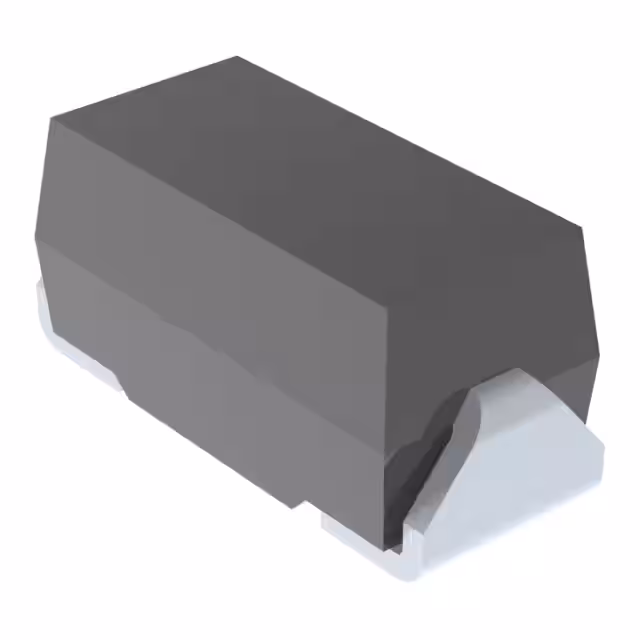

| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMAJ300 |
| Mfr | Microchip Technology |
| Product Status | Active |
| Series | - |
| Type | Zener |
Documents
No documents are linked to this part yet.
