Littelfuse Inc.United States

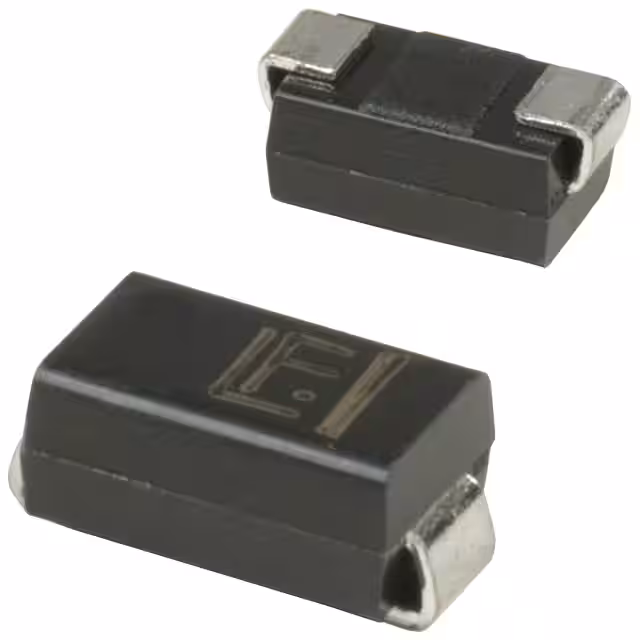

TVS DIODE 400VWM 648VC DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage400 V
Breakdown voltage447 V
Clamping voltage648 VMax
Peak pulse power400 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 600mA |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Voltage - Breakdown (Min) | 447V |
| Voltage - Clamping (Max) @ Ipp | 648V |
| Voltage - Reverse Standoff (Typ) | 400V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SMAJ |
| Type | Zener |
