Taiwan Semiconductor CorporationTaiwan, China

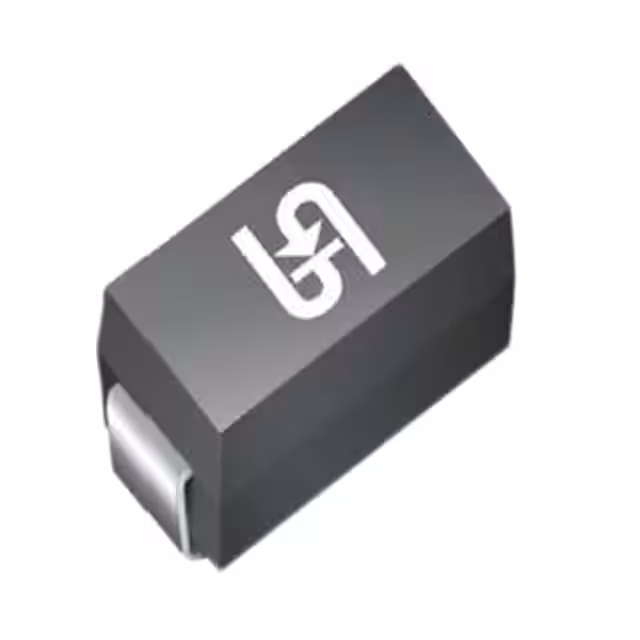

TVS DIODE 54VWM 87.1VC DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage54 V
Breakdown voltage60 V
Clamping voltage87.1 VMax
Peak pulse power400 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 4.6A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 60V |
| Voltage - Clamping (Max) @ Ipp | 87.1V |
| Voltage - Reverse Standoff (Typ) | 54V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMAJ54 |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | SMAJ |
| Type | Zener |
