Diodes IncorporatedUnited States

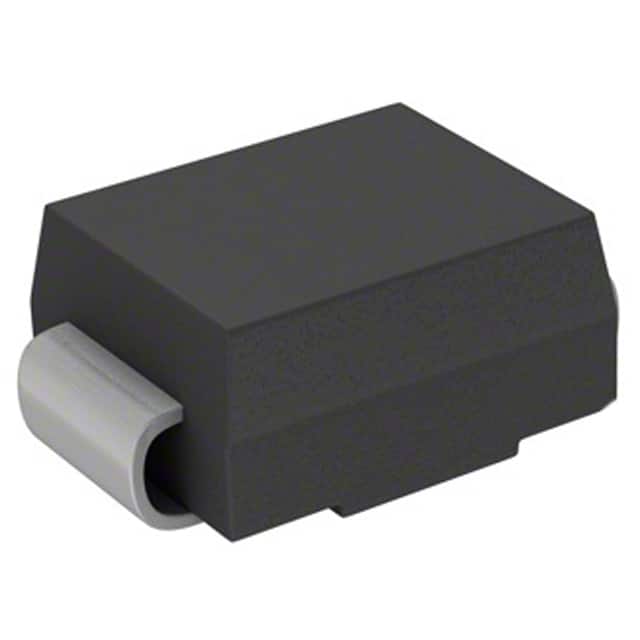

DIODE ZENER 15V 1W SMA
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage15 V
Tolerance5 %
Power1 WMax
Zener impedance10 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 1 µA @ 11.4 V |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Voltage - Zener (Nom) (Vz) | 15 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 10 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Other | |
| Base Product Number | SMAZ15 |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Series | - |
| Tolerance | ±5% |
