View full reportTechnical parameters
Key specs
Zener voltage20 V
Tolerance5 %
Power1 WMax
Zener impedance15 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA @ 15.2 V |
| Power - Max | 1 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Voltage - Zener (Nom) (Vz) | 20 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 15 Ohms |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package | Bulk |

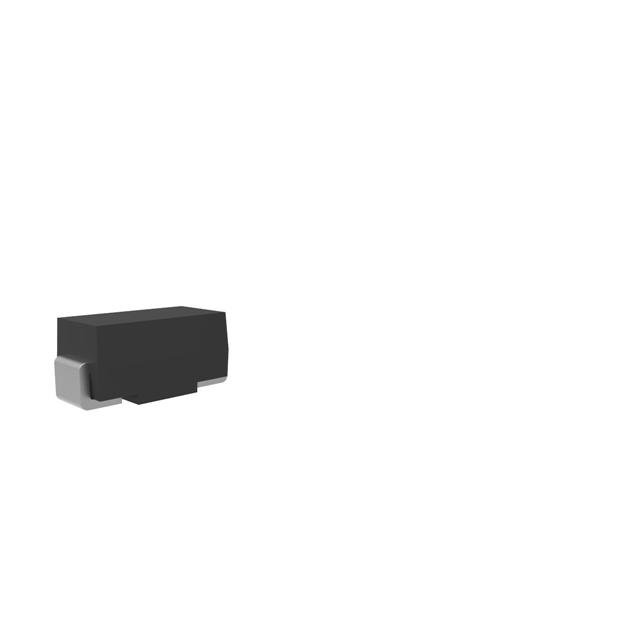

| Package / Case | DO-214AC, SMA |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Base Product Number | SMAZ20 |
| Mfr | Micro Commercial Co |
| Product Status | Active |
| Series | - |
| Tolerance | ±5% |
