View full reportTechnical parameters
Key specs
Reverse standoff voltage14 V
Breakdown voltage14.76 V
Clamping voltage24.36 VMax
Peak pulse power600 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 25.9A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 14.76V |
| Voltage - Clamping (Max) @ Ipp | 24.36V |
| Voltage - Reverse Standoff (Typ) | 14V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |

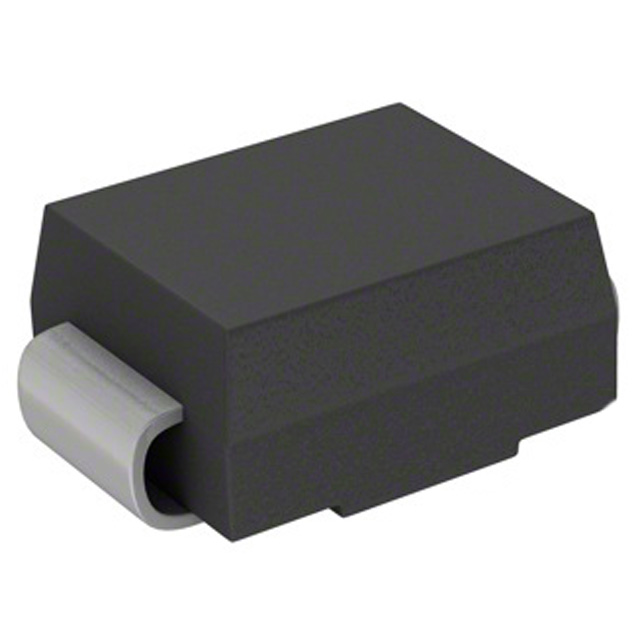

| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Series | SMBJ |
| Type | Zener |
