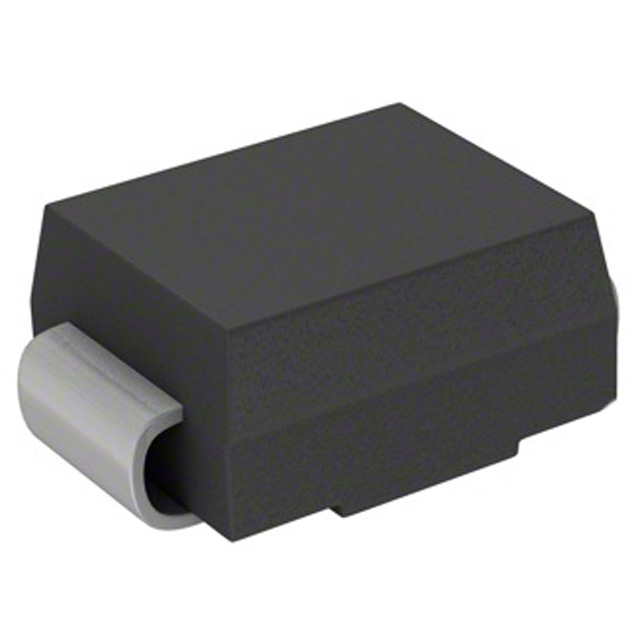

TVS DIODE 20VWM 32.4VC DO214AA
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage20 V
Breakdown voltage22.2 V
Clamping voltage32.4 VMax
Peak pulse power600 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 18.6A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 32.4V |
| Voltage - Reverse Standoff (Typ) | 20V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SMBJ |
| Type | Zener |
