Microsemi CorporationUnited States

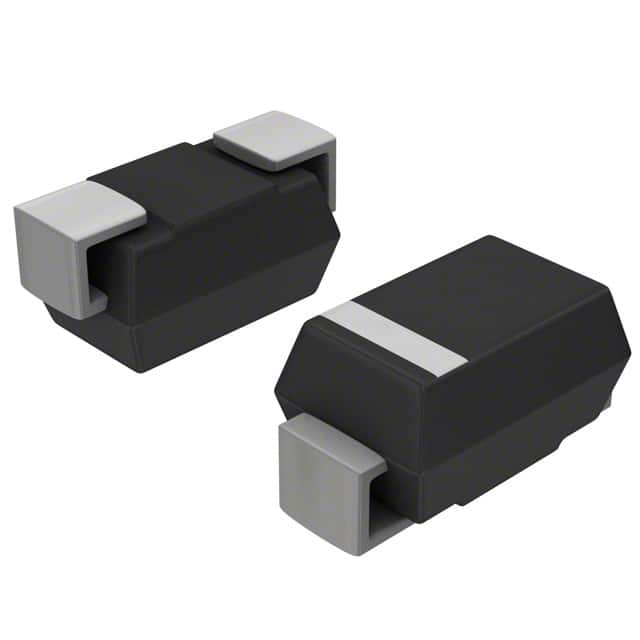

DIODE ZENER 100V 5W SMBJ
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage100 V
Tolerance10 %
Power5 WMax
Zener impedance90 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA @ 72 V |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1 A |
| Voltage - Zener (Nom) (Vz) | 100 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 90 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMBJ (DO-214AA) |
| Other | |
| Base Product Number | SMBJ5378 |
| Mfr | Microsemi Corporation |
| Product Status | Obsolete |
| Series | - |
| Tolerance | ±10% |
