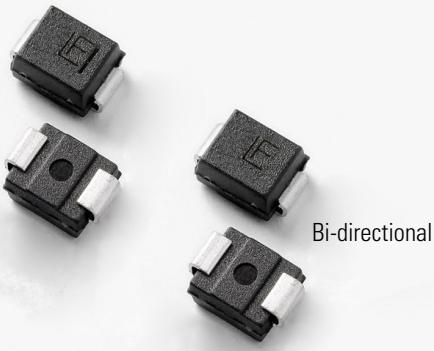

Uni-directional
Littelfuse Inc.United States
TVS DIODE 6VWM 10.3VC DO214AA
SMBJ6.0A is a unidirectional TVS diode with a reverse stand-off voltage of 6.0V and peak pulse power of 600W, packaged in DO-214AA (SMB), featuring fast response and low clamping voltage for transient voltage suppression.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage6 V
Breakdown voltage6.67 ~ 7.37 VIT = 10 mA
Clamping voltage10.3 VMax · IPP = 58.3 A
Peak pulse power600 W
PolarityUnidirectional
Datasheet-verified parameters
21 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Reverse Stand off Voltage | 6.0 V | |
| Breakdown Voltage | Min: 6.67 V, Max: 7.37 V @ IT = 10 mA | |
| Maximum Clamping Voltage | 10.3 V @ IPP = 58.3 A | |
| Peak Pulse Power Dissipation | 600 W (Single Die Parts, 10/1000us Test Waveform) | |
| Polarity | Uni-directional | |
| Package | DO-214AA (SMB) |
All parameters (18)
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 58.3A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6.67V |
| Voltage - Clamping (Max) @ Ipp | 10.3V |
| Voltage - Reverse Standoff (Typ) | 6V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SMBJ |
| Type | Zener |

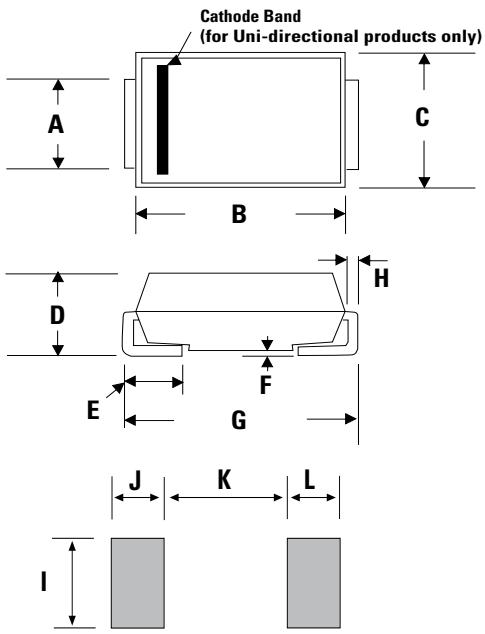

Pinout and package
PackageDO-214AA (SMB)
| Pin | Name | Function | Source |
|---|---|---|---|
| 1 | Anode | ||
| 2 | Cathode |
