Taiwan Semiconductor CorporationTaiwan, China

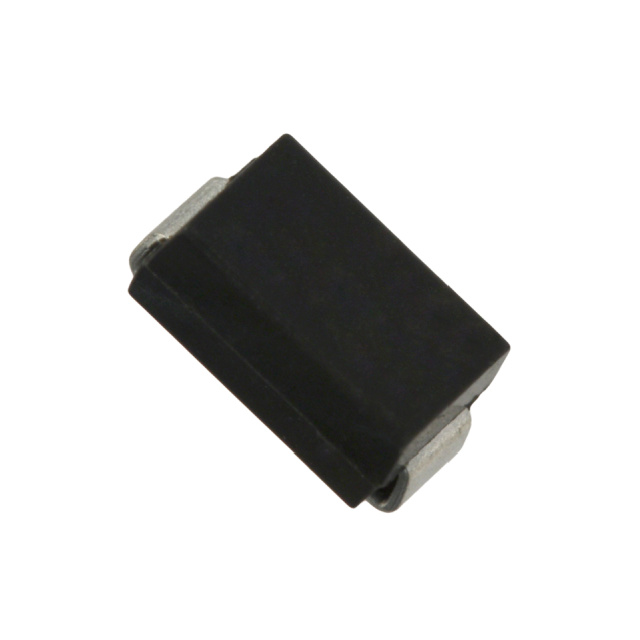

TVS DIODE 8VWM 13.6VC DO214AA
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage8 V
Breakdown voltage8.89 V
Clamping voltage13.6 VMax
Peak pulse power600 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 46A |
| Power Line Protection | No |
| Power - Peak Pulse | 600W |
| Voltage - Breakdown (Min) | 8.89V |
| Voltage - Clamping (Max) @ Ipp | 13.6V |
| Voltage - Reverse Standoff (Typ) | 8V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMBJ8.0 |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | SMBJ |
| Type | Zener |
