Bourns Inc.United States
TVS DIODE 180VWM 292VC SMC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage180 V
Breakdown voltage201 V
Clamping voltage292 VMax
Peak pulse power1.5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 5.1A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 201V |
| Voltage - Clamping (Max) @ Ipp | 292V |
| Voltage - Reverse Standoff (Typ) | 180V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

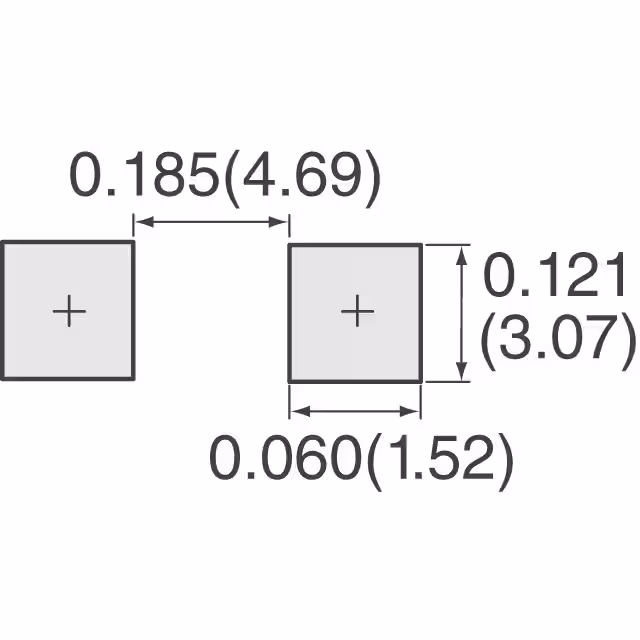

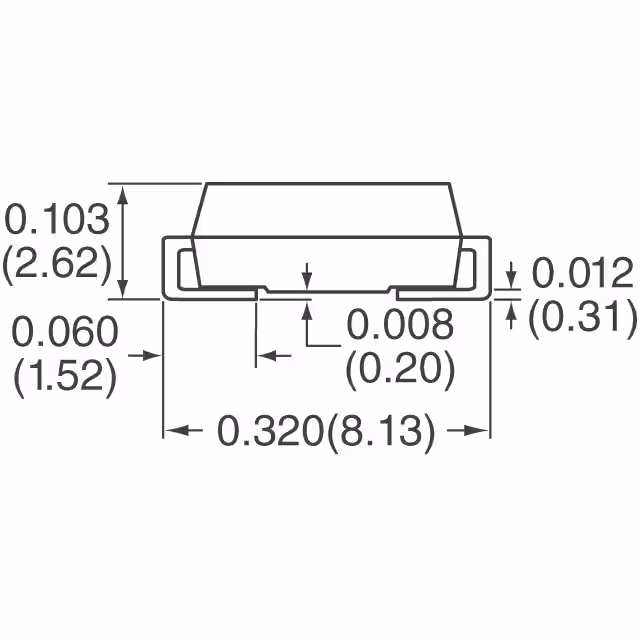

| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMCJ18 |
| Mfr | Bourns Inc. |
| Product Status | Active |
| Series | SMCJ |
| Type | Zener |
Documents
No documents are linked to this part yet.
