YAGEOTaiwan, China

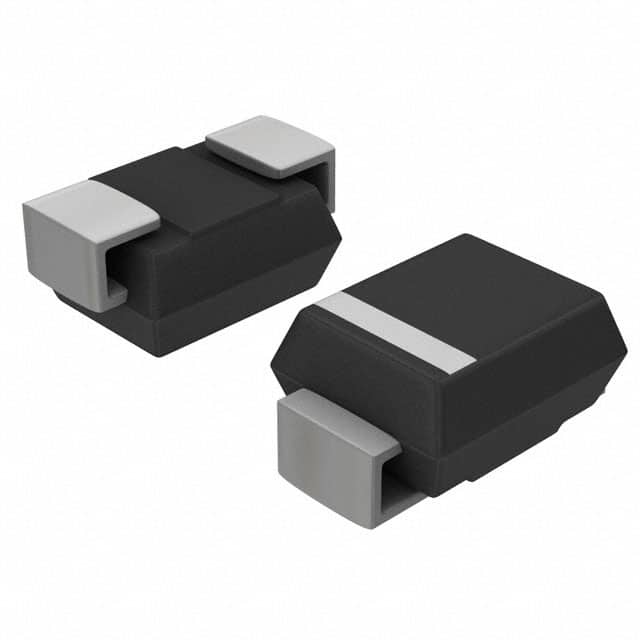

SMCJ, DO-214AB, 20V, 32.4V, AUTO
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage20 V
Breakdown voltage22.2 V
Clamping voltage32.4 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 46.3A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 32.4V |
| Voltage - Reverse Standoff (Typ) | 20V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Other | |
| Applications | Automotive |
| Mfr | YAGEO |
| Product Status | Active |
| Series | Automotive, AEC-Q101, SMCJ-AT |
| Type | Zener |
