Yangjie TechnologyChina

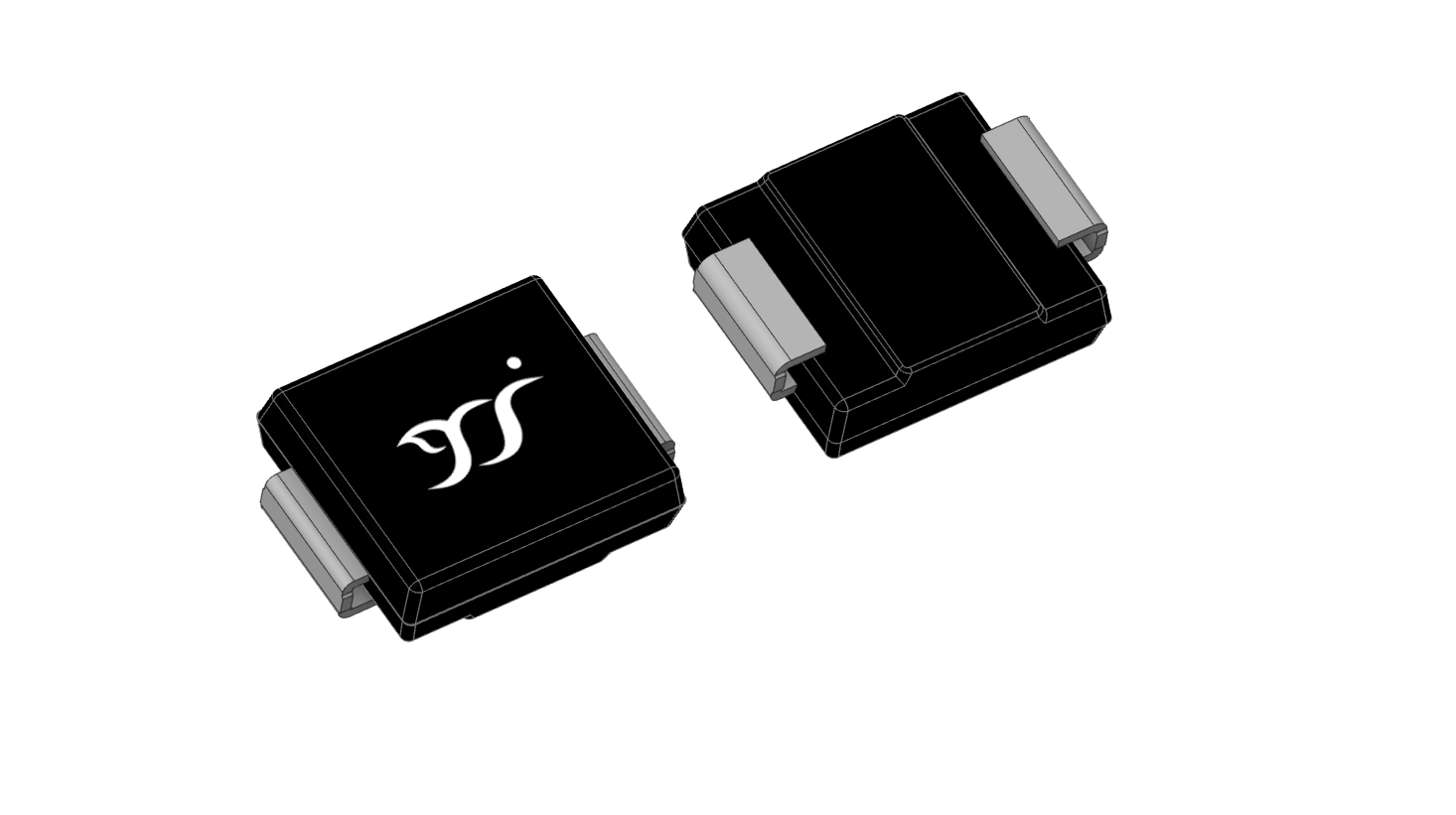

SMC 1500W 38.9V 38.56A TVS Diod
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage24 V
Breakdown voltage26.7 V
Clamping voltage38.9 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 38.6A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 38.9V |
| Voltage - Reverse Standoff (Typ) | 24V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Other | |
| Applications | General Purpose |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | SMCJ |
| Type | Zener |
