SMC Diode SolutionsUnited States

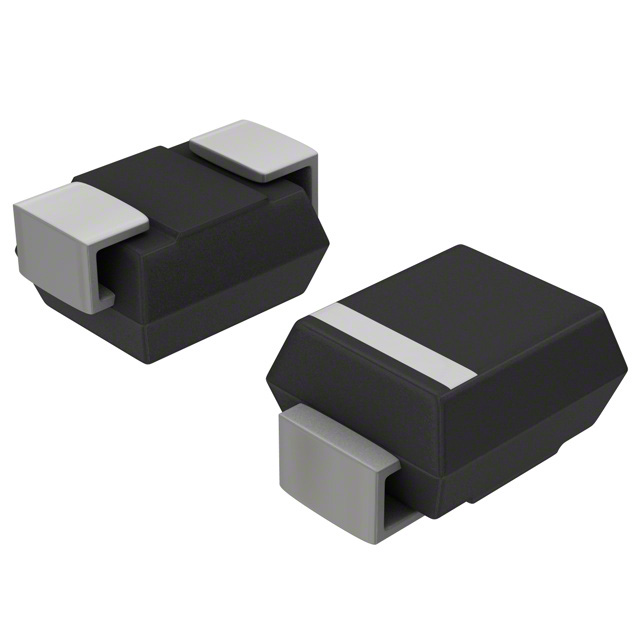

TVS DIODE 26VWM 42.1VC SMC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage26 V
Breakdown voltage28.9 V
Clamping voltage42.1 VMax
Peak pulse power1.5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 35.6A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Voltage - Reverse Standoff (Typ) | 26V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMCJ26 |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Type | Zener |
