TVS DIODE 58VWM 93.6VC SMC
SMCJ58CA is a bidirectional TVS diode with 58V reverse stand-off voltage, 1500W peak pulse power, SMC package, AEC-Q101 qualified, and lead-free.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage58 V
Breakdown voltage64.4 ~ 71.2 VIT=1 mA
Clamping voltage93.6 VMax · IPP=16.1 A
Peak pulse power1.5 kW
PolarityBidirectional
Datasheet-verified parameters
19 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Reverse Stand-Off Voltage | 58 V | |
| Breakdown Voltage | Min 64.4 V, Max 71.2 V @ IT=1 mA | |
| Maximum Clamping Voltage | 93.6 V @ IPP=16.1 A | |
| Peak Pulse Power Dissipation | 1500 W on 10/1000 us waveform | |
| Polarity | Bidirectional | |
| Package | SMC (Pb-Free) |
All parameters (19)
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 16A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 64.4V |
| Voltage - Clamping (Max) @ Ipp | 93.6V |
| Voltage - Reverse Standoff (Typ) | 58V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |

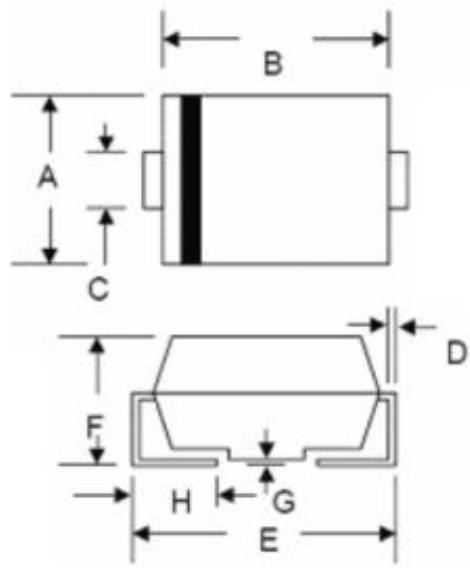

| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC (DO-214AB) |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMCJ58 |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Type | Zener |
