Microchip TechnologyUnited States

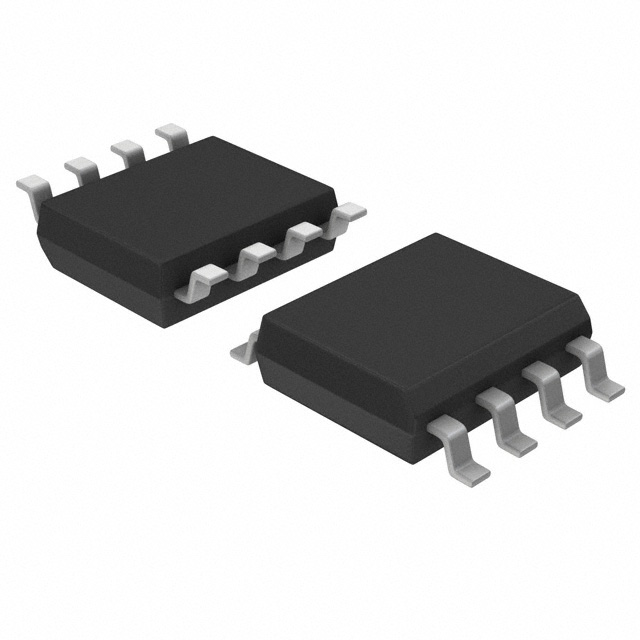

TVS DIODE 12VWM 24VC 8-SO
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage12 V
Breakdown voltage13.3 V
Clamping voltage24 VMax
Peak pulse power300 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 4 |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | 300W |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 24V |
| Voltage - Reverse Standoff (Typ) | 12V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 75pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMDA12 |
| Mfr | Microchip Technology |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Series | TVSarray™ |
| Type | Zener |
Documents
No documents are linked to this part yet.
