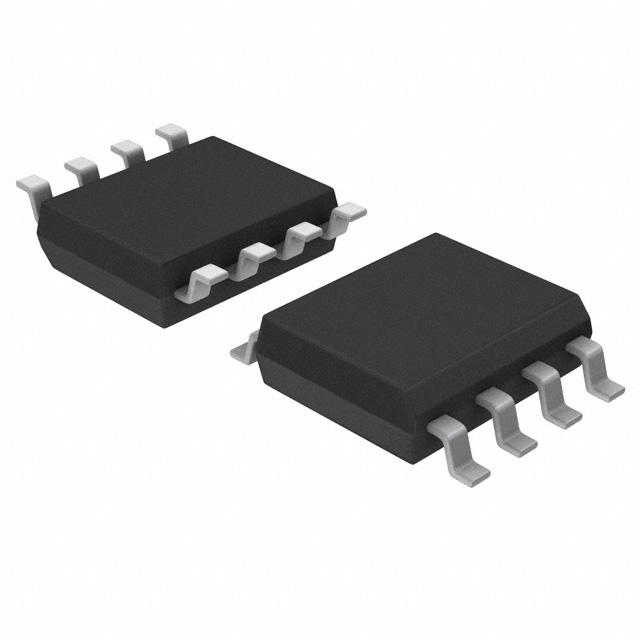

SMDA15C-7.TBT
Semtech CorporationUnited States

SMDA15C-7.TBT

ObsoleteTVS Diodes8-SOIC

TVS DIODE 15VWM 24VC 8-SO

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Reverse standoff voltage15 V
Breakdown voltage16.7 V
Clamping voltage24 VMax
Peak pulse power300 W
PolarityBidirectional
Power
Bidirectional Channels7
Current - Peak Pulse (10/1000µs)10A (8/20µs)
Power Line ProtectionNo
Power - Peak Pulse300W
Voltage - Breakdown (Min)16.7V
Voltage - Clamping (Max) @ Ipp24V
Voltage - Reverse Standoff (Typ)15V (Max)
AC and DC characteristics
Capacitance @ Frequency75pF @ 1MHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 125°C (TJ)
PackageTape & Reel (TR)
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
Other
ApplicationsGeneral Purpose
Base Product NumberSMDA15
MfrSemtech Corporation
Product StatusObsolete
SeriesSMDAC-7
TypeZener
