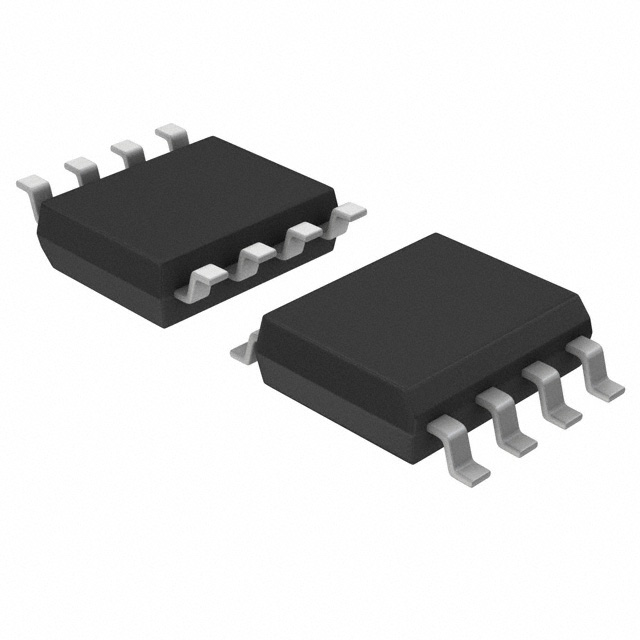

SMDA24C-5.TBT
Semtech CorporationUnited States

SMDA24C-5.TBT

ActiveTVS Diodes8-SOIC

TVS DIODE 24VWM 43VC 8-SO

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Reverse standoff voltage24 V
Breakdown voltage26.7 V
Clamping voltage43 VMax
Peak pulse power300 W
PolarityBidirectional
Power
Bidirectional Channels5
Current - Peak Pulse (10/1000µs)5A (8/20µs)
Power Line ProtectionNo
Power - Peak Pulse300W
Voltage - Breakdown (Min)26.7V
Voltage - Clamping (Max) @ Ipp43V
Voltage - Reverse Standoff (Typ)24V (Max)
AC and DC characteristics
Capacitance @ Frequency50pF @ 1MHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 125°C (TJ)
PackageTape & Reel (TR) Cut Tape (CT) Digi-Reel®
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO
Other
ApplicationsGeneral Purpose
Base Product NumberSMDA24
MfrSemtech Corporation
Product StatusActive
SeriesSMDAC-5
TypeZener
