Littelfuse Inc.United States

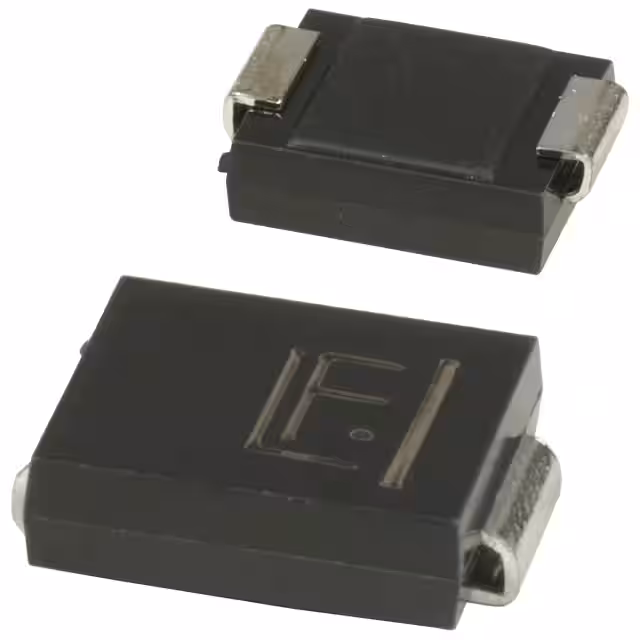

TVS DIODE 20VWM 34.02VC DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage20 V
Breakdown voltage21.02 V
Clamping voltage34.02 VMax
Peak pulse power3 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 92.6A |
| Power Line Protection | No |
| Power - Peak Pulse | 3000W (3kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 21.02V |
| Voltage - Clamping (Max) @ Ipp | 34.02V |
| Voltage - Reverse Standoff (Typ) | 20V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Series | SMDJ |
| Type | Zener |
