Littelfuse Inc.United States

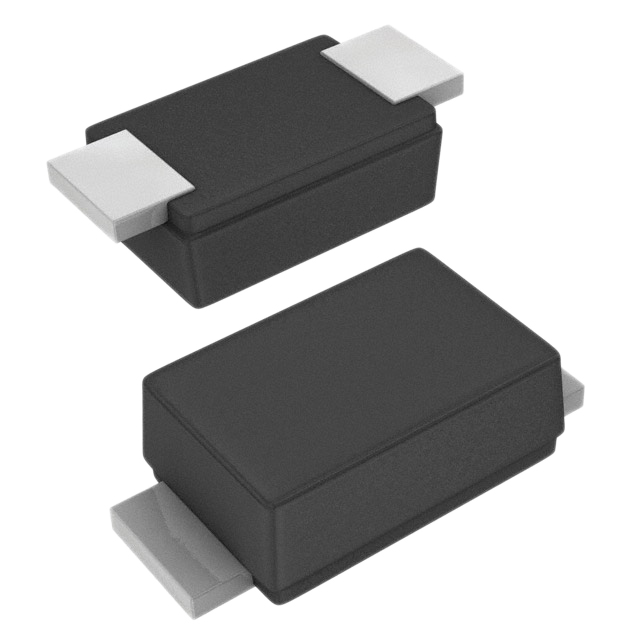

TVS SOD123FL 18V 200W UNIDIR
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage18 V
Breakdown voltage20 V
Clamping voltage29.2 VMax
Peak pulse power200 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 6.8A |
| Power Line Protection | No |
| Power - Peak Pulse | 200W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 20V |
| Voltage - Clamping (Max) @ Ipp | 29.2V |
| Voltage - Reverse Standoff (Typ) | 18V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123F |
| Other | |
| Applications | General Purpose |
| Base Product Number | SMF18 |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SMF |
| Type | Zener |
