View full reportTechnical parameters
| Environment and package | |
|---|---|

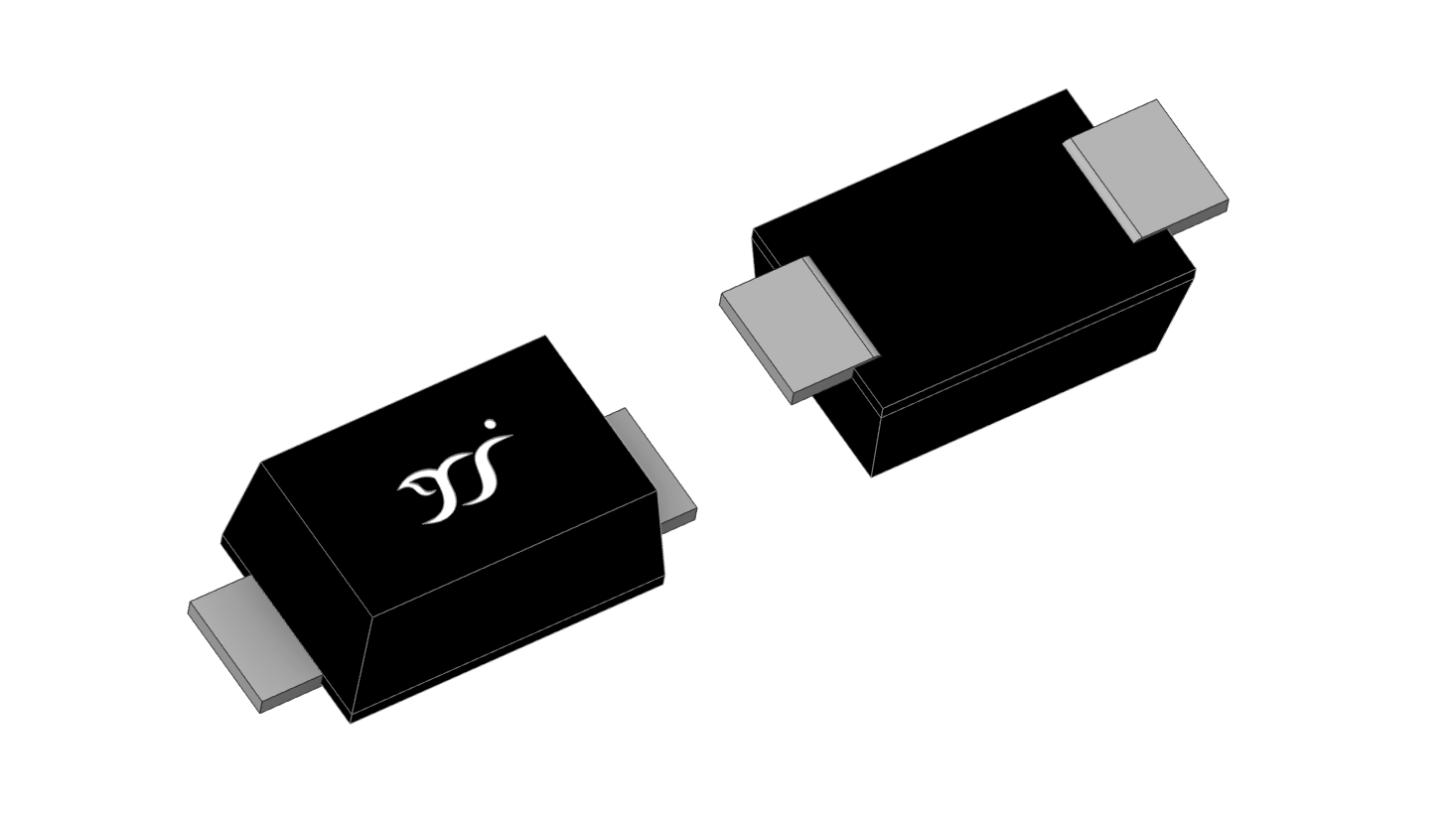

| Package | SOD-123FL |
| Other | |
| IR@VR(V) | 22.8 |
| IR@VR(μA) | 5 |
| IZK(mA) | 0.25 |
| Izm(mA) | 30 |
| IZT(mA) | 8.5 |
| PD(W) | 1 |
| Status | Active |
| Tj（℃） | -55～+150 |
| VF@IF=200mA(V) | 1.2 |
| VZ_Max@IZT(V) | 31.5 |
| VZ_Min@IZT(V) | 28.5 |
| VZ_Typ@IZT(V) | 30 |
| ZZK@IZK(Ω) | 1000 |
| ZZT@IZT(Ω) | 40 |
