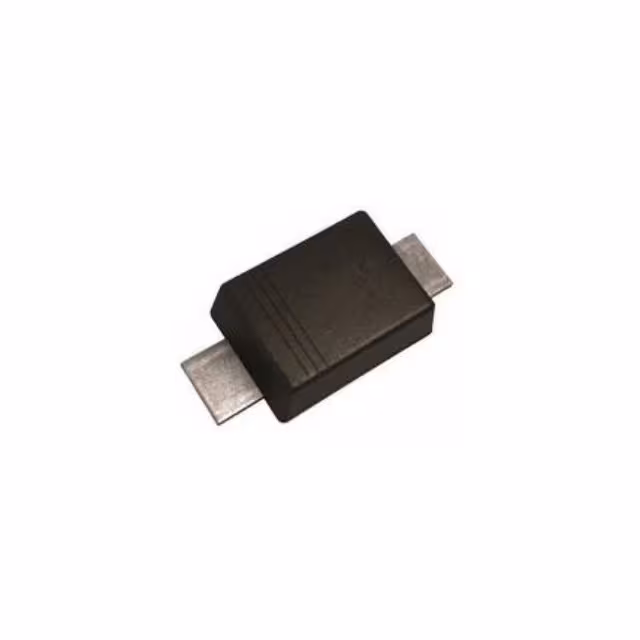

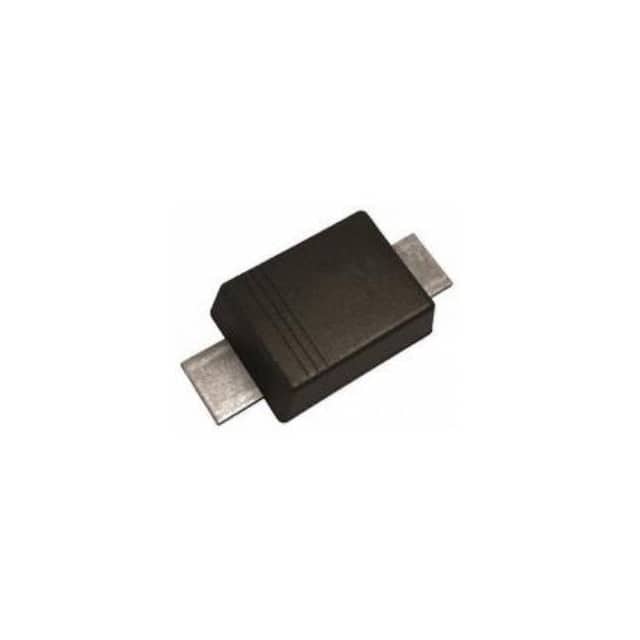

TVS DIODE 7VWM 12VC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage7 V
Breakdown voltage7.78 V
Clamping voltage12 VMax
Peak pulse power200 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 16.67A |
| Power Line Protection | - |
| Power - Peak Pulse | 200W |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Voltage - Reverse Standoff (Typ) | 7V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | SOD-123FL |
| Supplier Device Package | - |
| Other | |
| Applications | General Purpose |
| Mfr | Meritek |
| Product Status | Active |
| Series | SMF |
| Type | Zener |
