MeritekUnited States

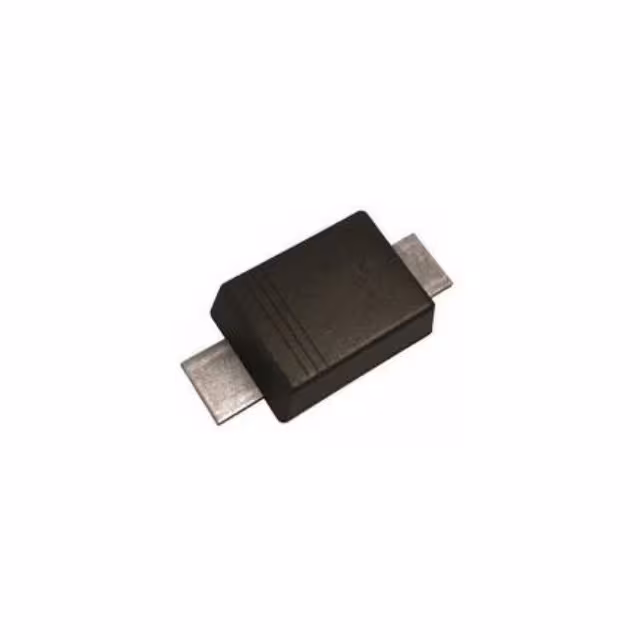

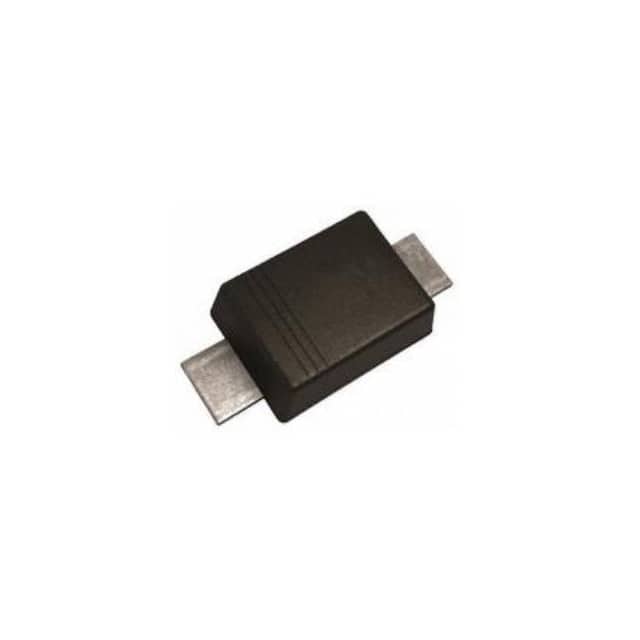

TVS DIODE 7.5VWM 12.9VC
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage7.5 V
Breakdown voltage8.33 V
Clamping voltage12.9 VMax
Peak pulse power200 W
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 15.5A |
| Power Line Protection | - |
| Power - Peak Pulse | 200W |
| Voltage - Breakdown (Min) | 8.33V |
| Voltage - Clamping (Max) @ Ipp | 12.9V |
| Voltage - Reverse Standoff (Typ) | 7.5V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | SOD-123FL |
| Supplier Device Package | - |
| Other | |
| Applications | General Purpose |
| Mfr | Meritek |
| Product Status | Active |
| Series | SMF |
| Type | Zener |
