Hyperabrupt Junction Tuning Varactors
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Vr Reverse Breakdown Voltage Ir = 10 µA (V) Min. | 20 |
| Environment and package | |

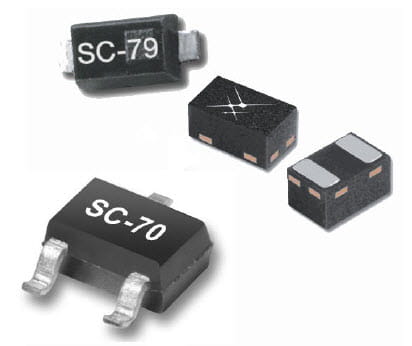

| Package Type | SC-70, SC-79, SOD-882 |
| Other | |
| Capacitance Ratio Range (V) | 0.5 to 2.5 |
| Ct Total Capacitance 3 Vr=1 V (pF) Typ. | 5.11 |
| Ct Total Capacitance 3 Vr=4 V (pF) Typ. | 1.54 |
| Rs Series Resistance Max 2 (Ω) | 1.2 |
| Total Capacitance Ratio Min. 1 | 2.3 |
