Texas InstrumentsUnited States

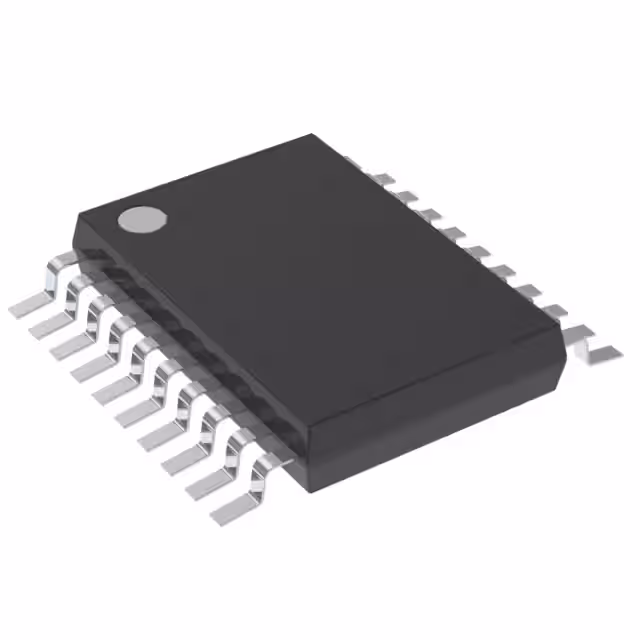

IC OCTAL D TRANSP LATCH 20SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| AC and DC characteristics | |
| Delay Time - Propagation | 6.5ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SO |
| Other | |
| Base Product Number | 74ACT563 |
| Circuit | 8:8 |
| Independent Circuits | 1 |
| Logic Type | D-Type Transparent Latch |
| Mfr | Texas Instruments |
| Output Type | Tri-State |
| Product Status | Obsolete |
| Series | 74ACT |
