Texas InstrumentsUnited States

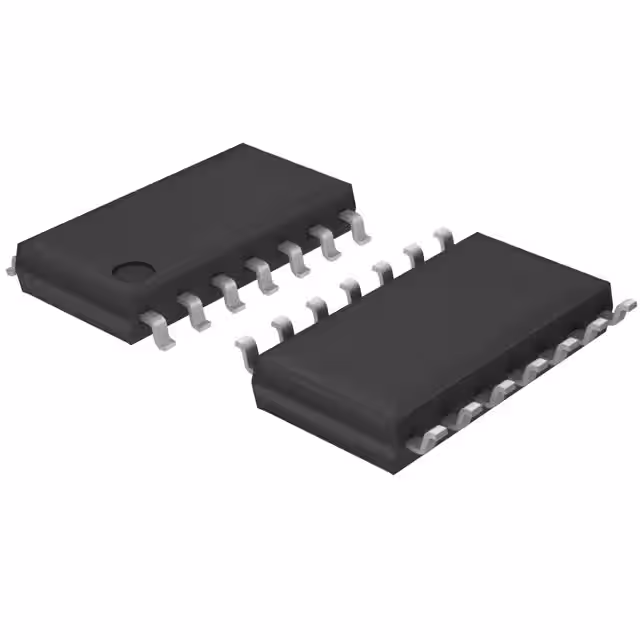

IC GATE NOR 4CH 2-INP 14SOP
All alternatives
View full reportTechnical parameters
Key specs
Logic typeNOR
Elements4
Inputs2
Supply voltage2 ~ 5.5 V
Propagation delay8.5 nsMax · 5V
| Power | |
|---|---|
| Current - Output High, Low | 8mA, 8mA |
| Current - Quiescent (Max) | 2 µA |
| Voltage - Supply | 2V ~ 5.5V |
| AC and DC characteristics | |
| Max Propagation Delay @ V, Max CL | 8.5ns @ 5V, 50pF |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SO |
| Other | |
| Base Product Number | 74AHC02 |
| Features | - |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Logic Type | NOR Gate |
| Mfr | Texas Instruments |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Product Status | Active |
| Series | 74AHC |
