View full reportTechnical parameters
| Power | |
|---|---|
| 工作静态电流 | 0.01mA |
| 最大工作电压 | 3.6V |
| 最大输出电流 | 24mA |
| 最小工作电压 | 1.65V |
| 静态工作电流 | 0.01mA |
| AC and DC characteristics | |
| 传播延迟时间 | 6.2ns |
| 传输延迟时间 | 6.2ns |

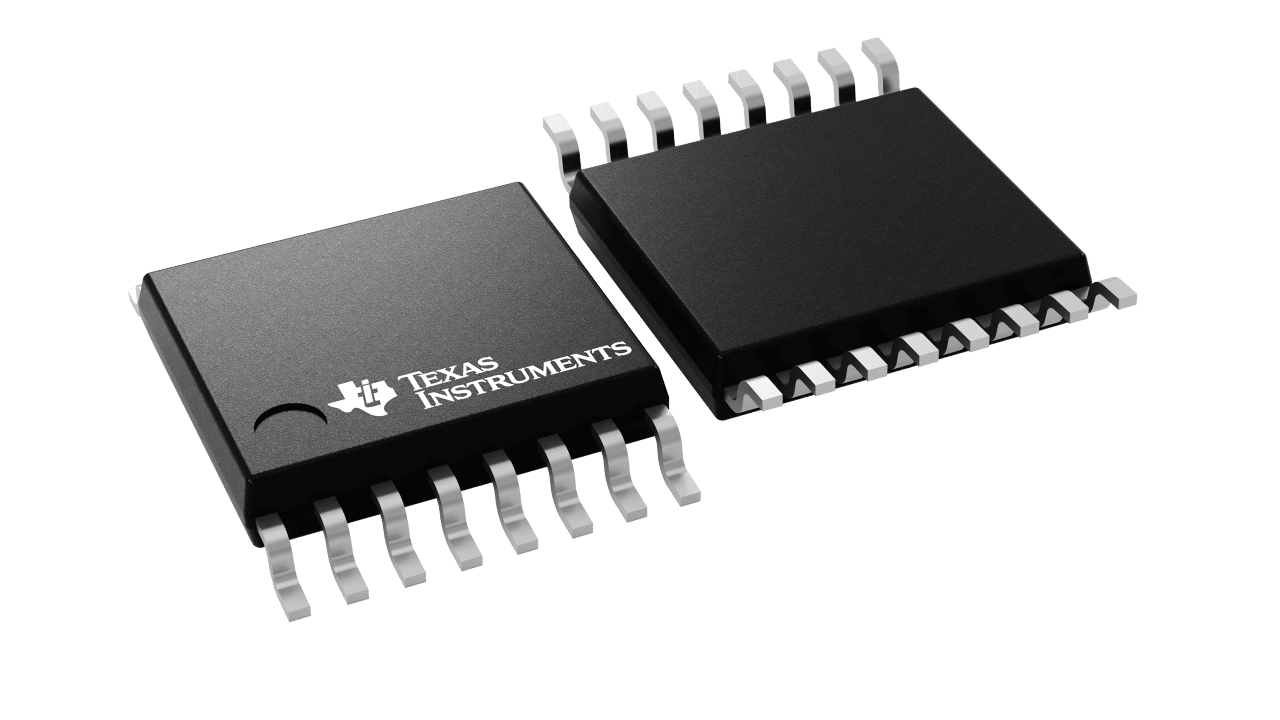

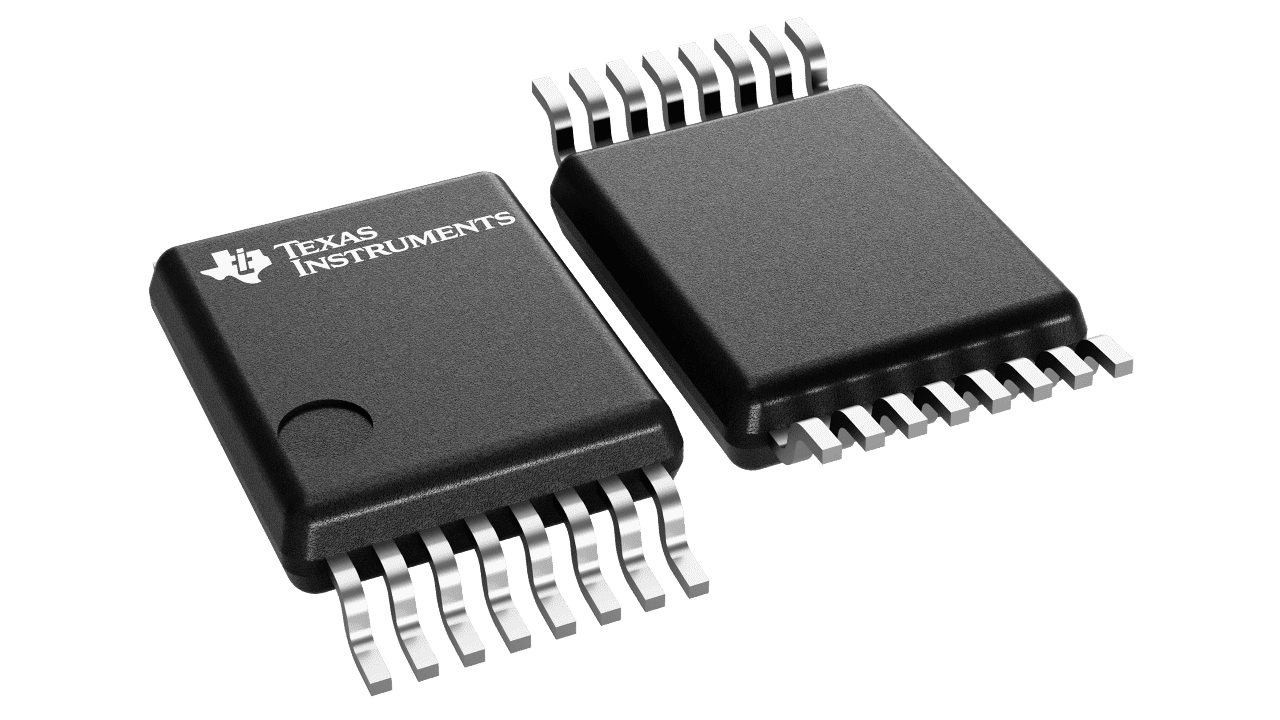

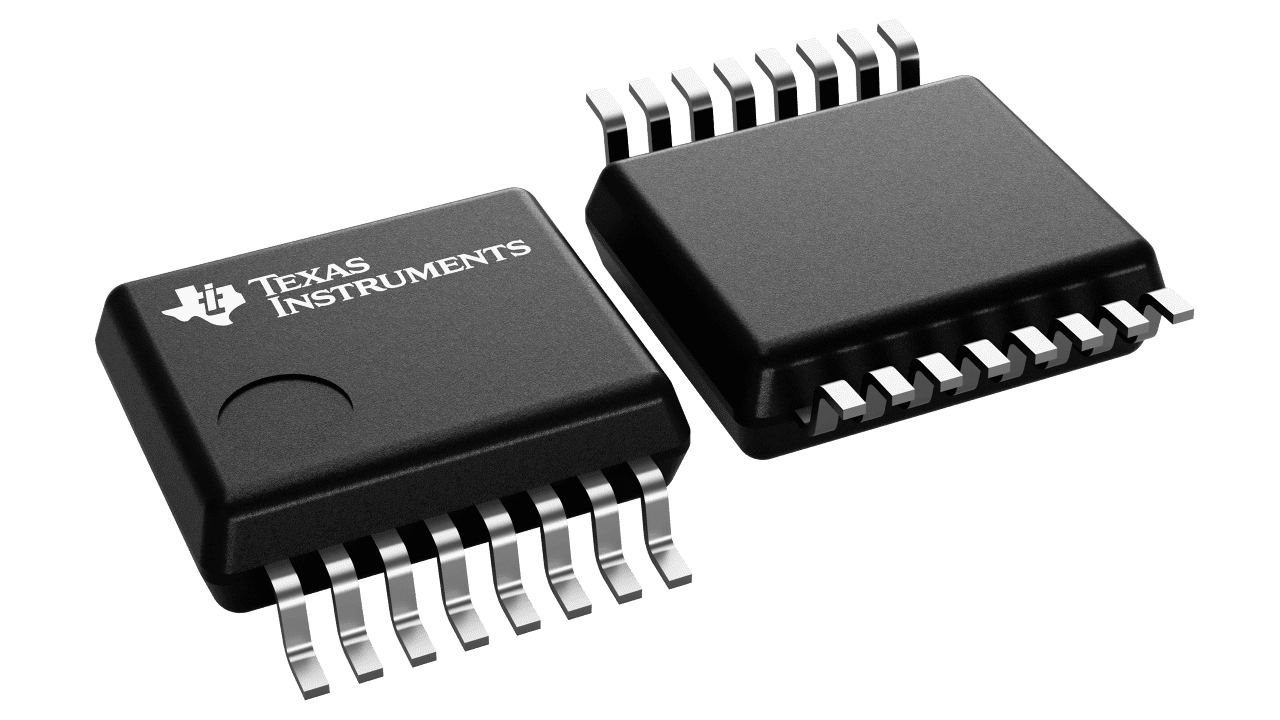

| Environment and package | |
| 封装类型1 | SOIC |
| 封装类型2 | SOIC |
| 封装类型3 | SOIC |
| 封装类型4 | SOIC |
| 封装类型5 | TSSOP |
| 封装类型6 | QFN |
| 封装类型7 | BGA |
| 尺寸规格1 | 9.9*3.9*1.75mm |
| 尺寸规格2 | 6.2*5.3*2mm |
| 尺寸规格3 | 4.4*3.6*1.2mm |
| 尺寸规格4 | 10.2*5.3*2mm |
| 尺寸规格5 | 5*4.4*1.2mm |
| 尺寸规格6 | 4*3.5*1mm |
| 尺寸规格7 | 4*3*1mm |
| Other | |
| 引脚数量1 | 16 |
| 引脚数量2 | 16 |
| 引脚数量3 | 16 |
| 引脚数量4 | 16 |
| 引脚数量5 | 16 |
| 引脚数量6 | 16 |
| 引脚数量7 | 20 |
