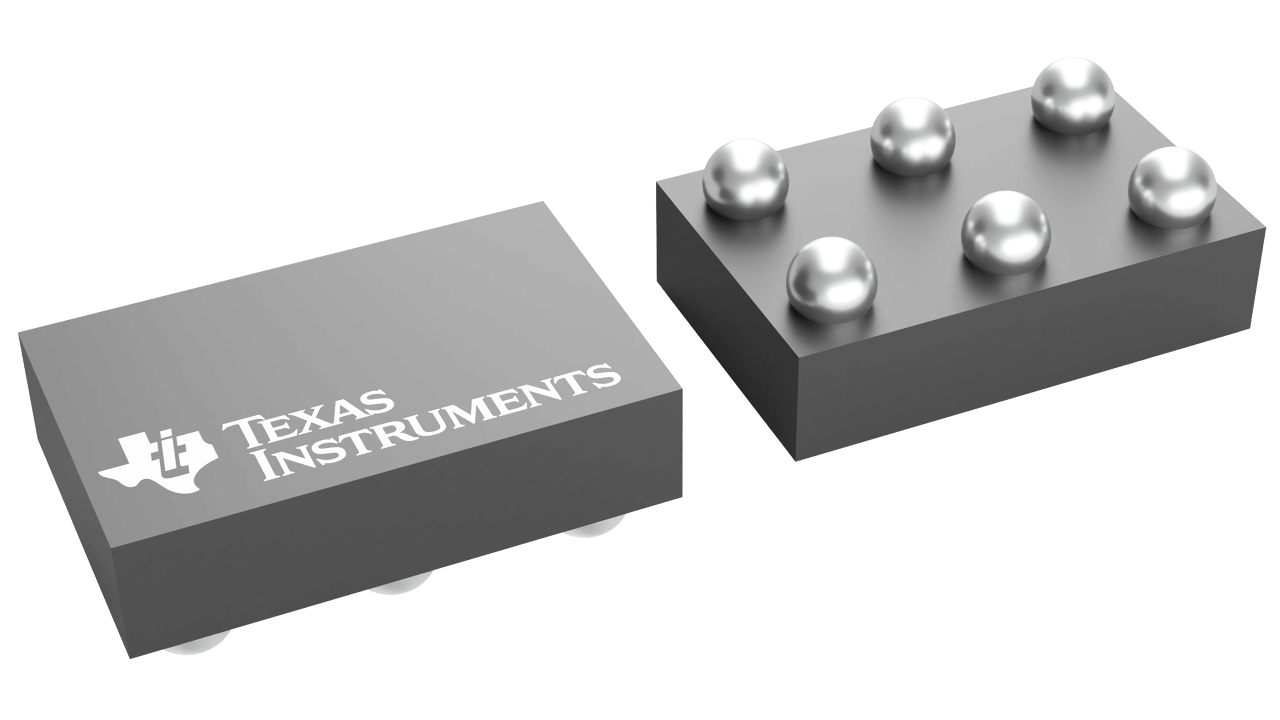

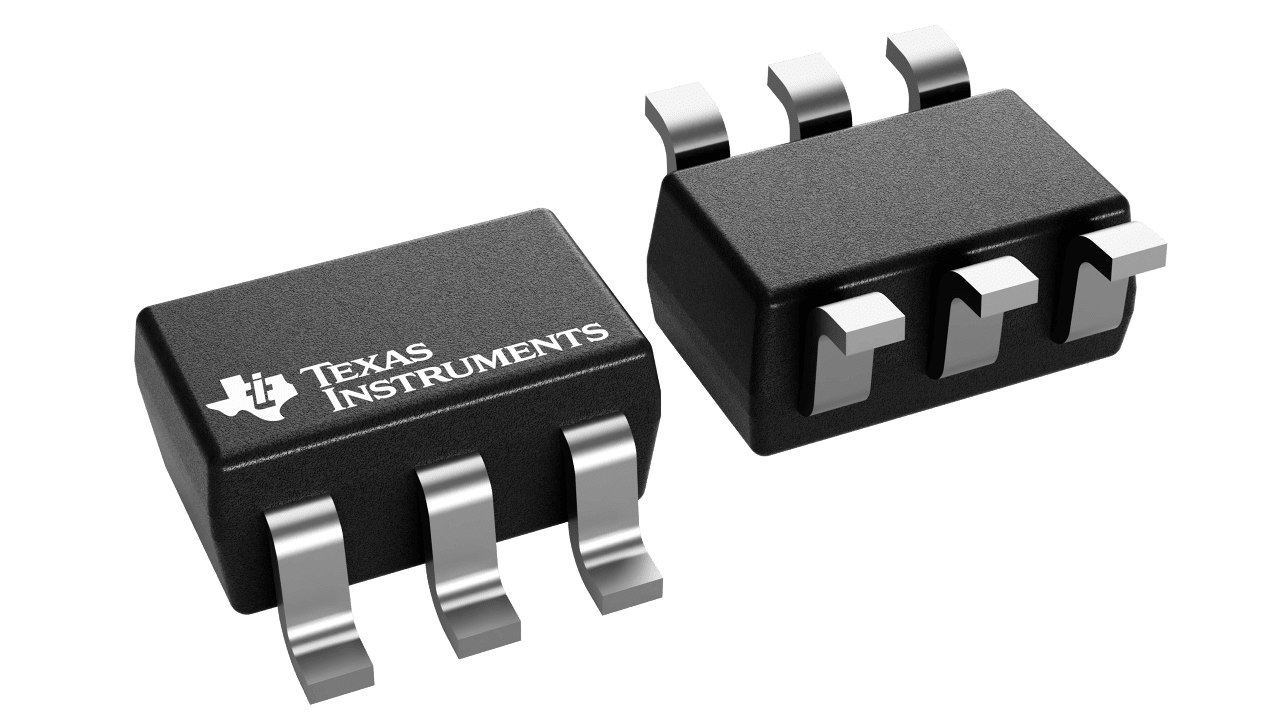

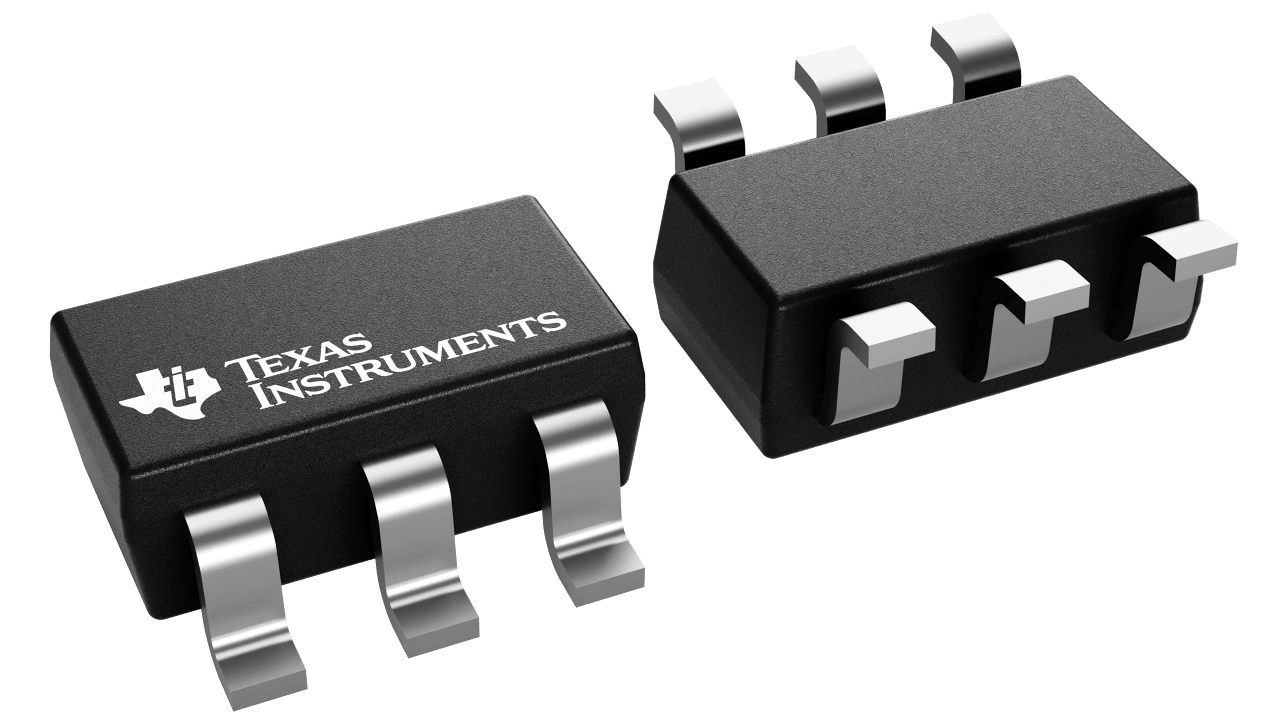

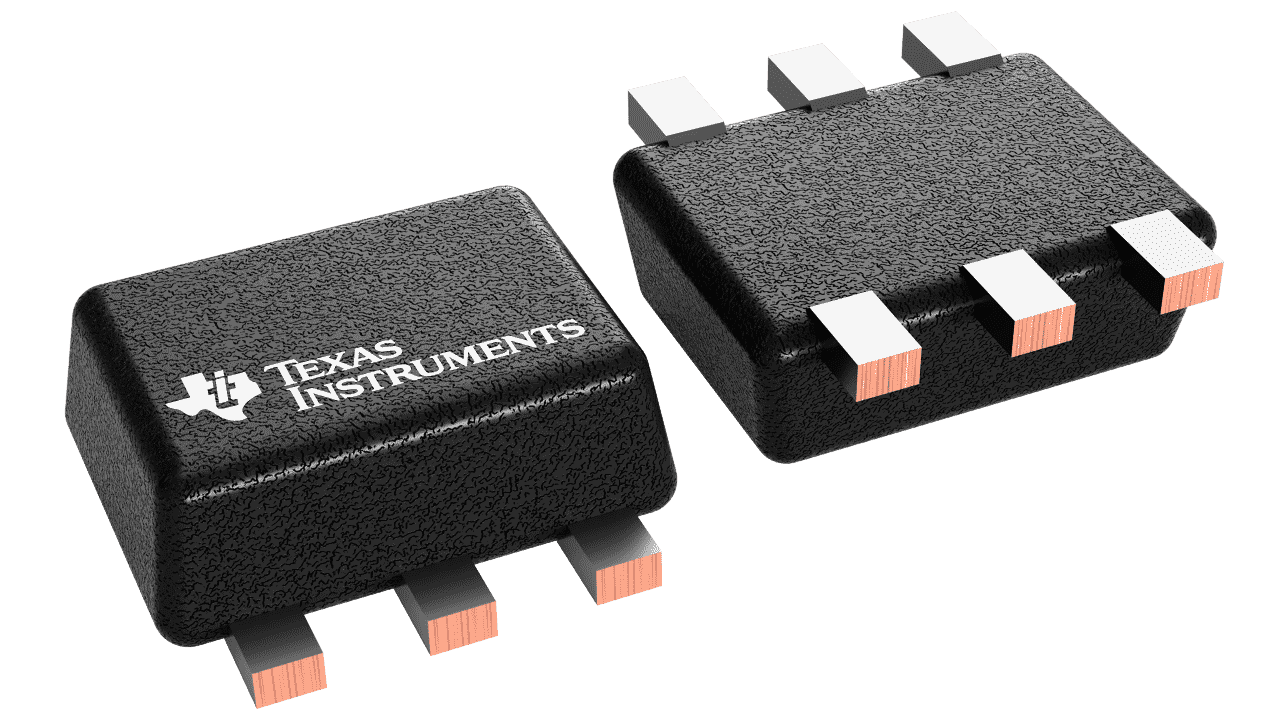

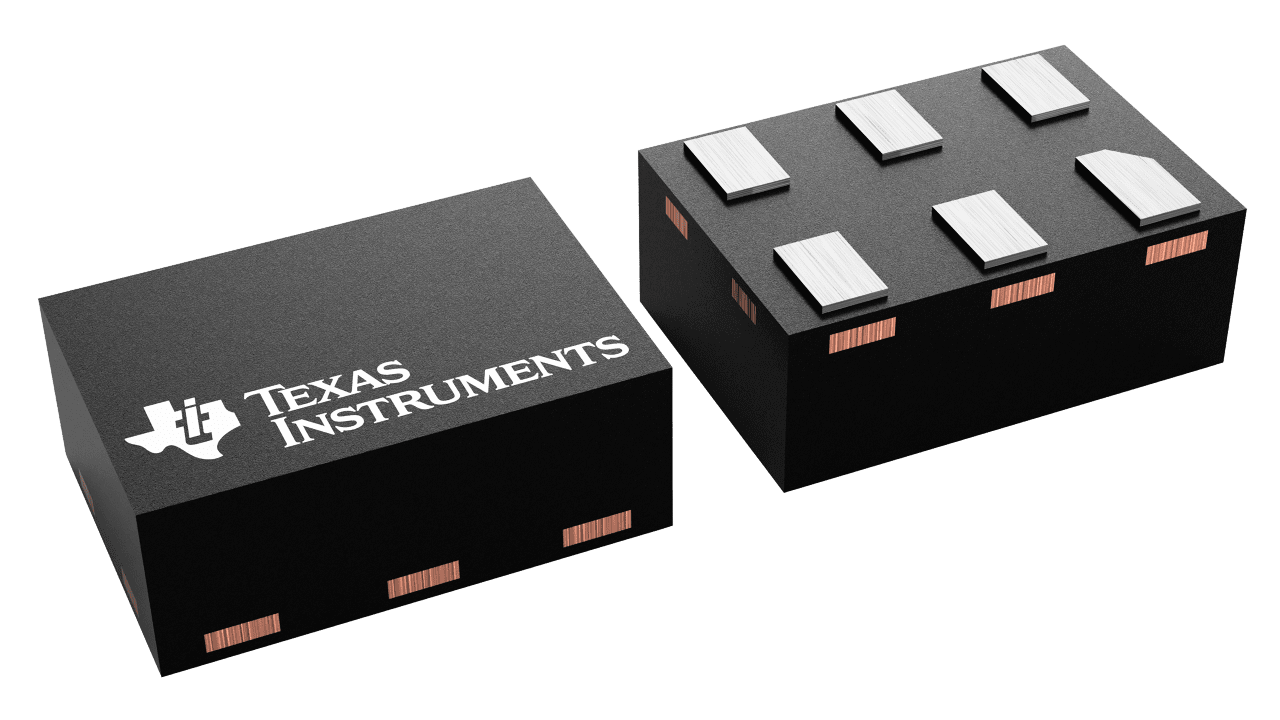

The SN74LVC1G57 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions AND, OR, NAND, NOR, XNOR, inverter, and buffer. All inputs can be connected to V CC or GND. This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (V T+ ) and negative-going (V T– ) signals. This configurable multiple-function gate is designed for 1.65-V to 5.5-V V CC operation. This device is fully specified for partial-power-down applications using I off . The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Inputs per channel | 1 |
| Number of channels | 1 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Data rate (max) (Mbps) | 100 |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Input type | Schmitt-Trigger |
| IOH (max) (mA) | -32 |
| IOL (max) (mA) | 32 |
| Output type | Push-Pull |
| Rating | Catalog |
| Technology family | LVC |
