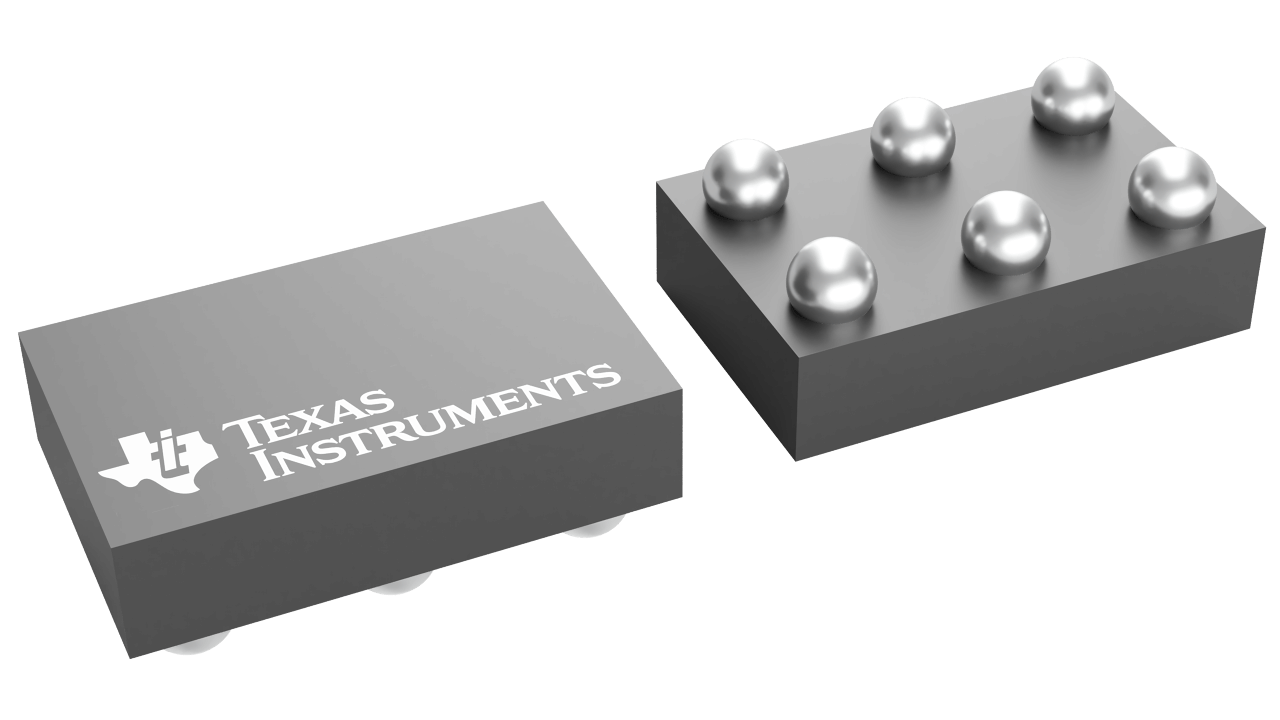

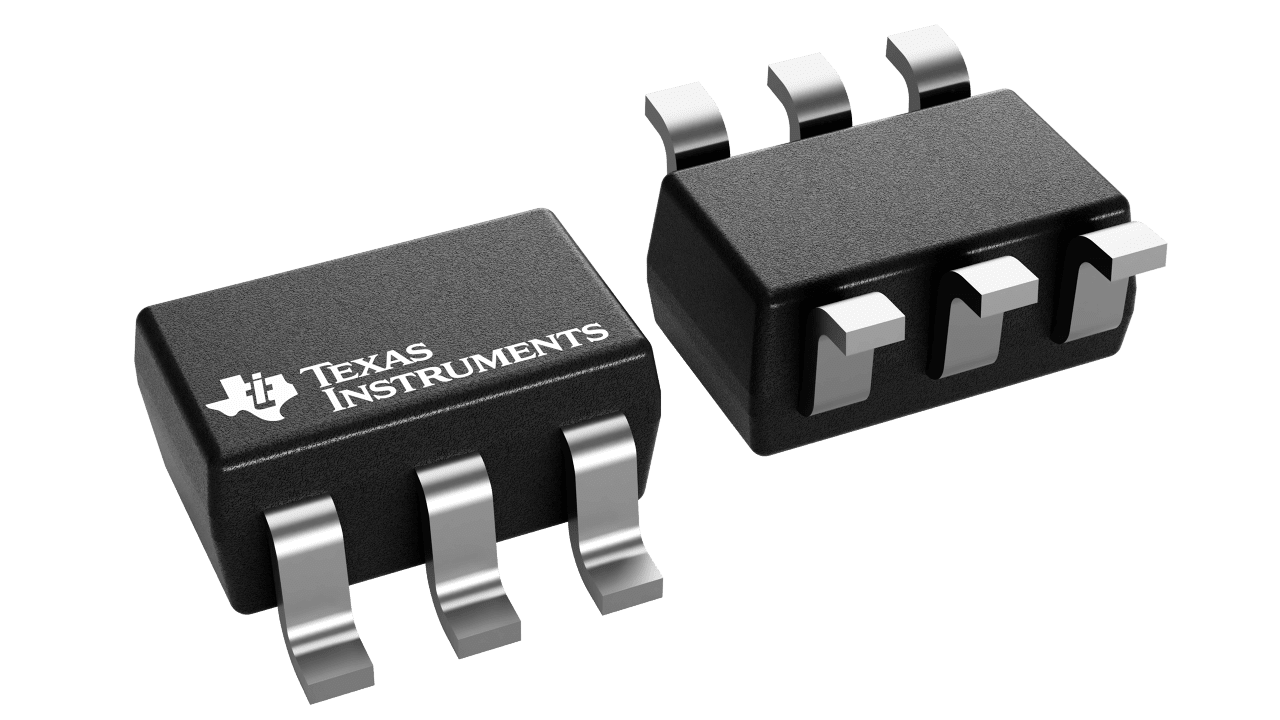

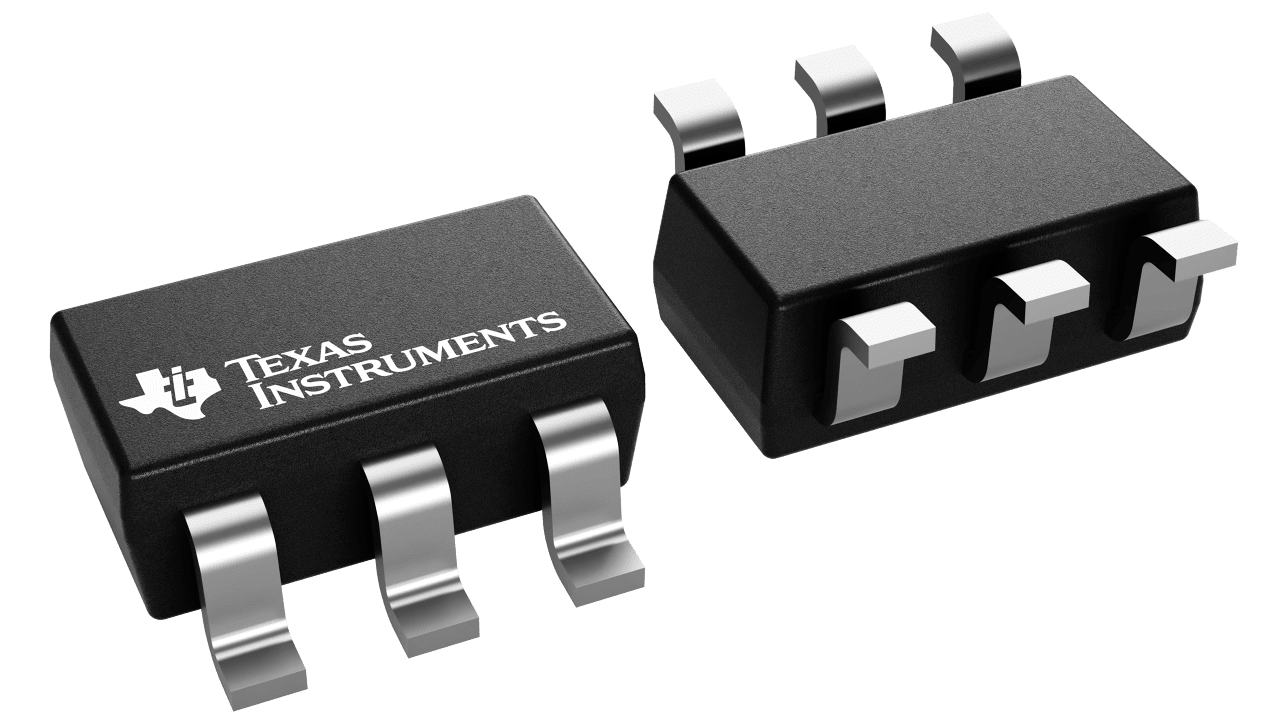

This dual Schmitt-trigger inverter is designed for 1.65-V to 5.5-V V CC operation. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC2G14 device contains two inverters and performs the Boolean function Y = A . The device functions as two independent inverters, but because of Schmitt action, it may have different input threshold levels for positive-going (V T+ ) and negative-going (V T– ) signals. This device is fully specified for partial-power-down applications using I off . The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. For all available packages, see the orderable addendum at the end of the data sheet.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Number of channels | 2 |
| Supply current (max) (µA) | 10 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Features | Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Input type | Schmitt-Trigger |
| IOH (max) (mA) | -32 |
| IOL (max) (mA) | 32 |
| Output type | Push-Pull |
| Rating | Catalog |
| Technology family | LVC |
