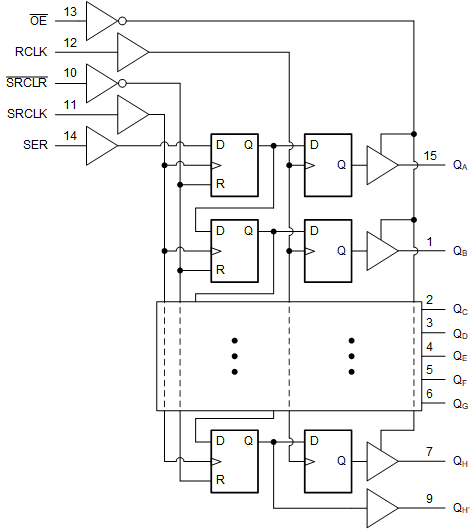

The SN74LVC595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3- state outputs. Separate clocks are provided for both the shift and storage registers. The shift register has a direct overriding clear ( /SRCLR ) input, a serial (SER) input, and a serial output for cascading. When the output-enable ( /OE ) input is high, all outputs except QH′ are in the high-impedance state.
