Littelfuse Inc.United States

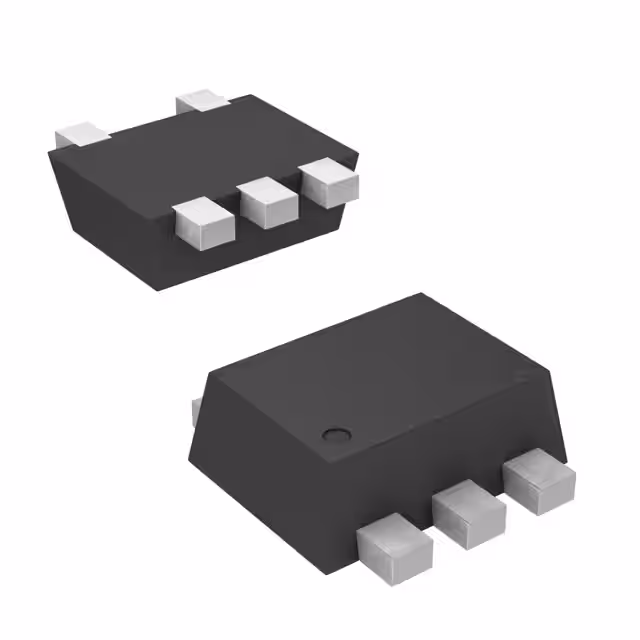

TVS DIODE 5.5VWM 13VC SOT553
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5.5 V
Breakdown voltage7 V
Clamping voltage13 VMax
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | - |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SOT-553 |
| Supplier Device Package | SOT-553 |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SP1001, SPA® |
| Type | Zener |
