Littelfuse Inc.United States

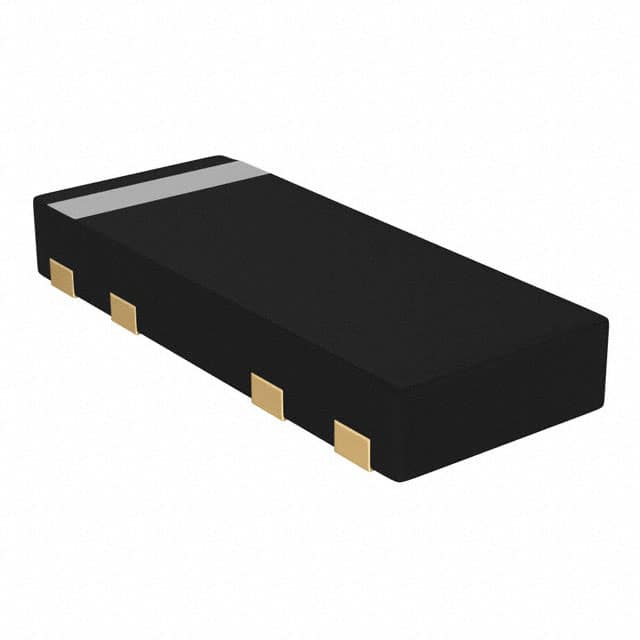

TVS DIODE 9.2VC 1004/10DFN
All alternatives
View full reportTechnical parameters
Key specs
Breakdown voltage9 V
Clamping voltage9.2 VTyp
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | - |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 9V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 9.2V (Typ) |
| Voltage - Reverse Standoff (Typ) | - |
| AC and DC characteristics | |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 10-XFDFN |
| Supplier Device Package | 1004/10DFN (2.5x1.0) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SPA® |
| Type | Zener |
