Littelfuse Inc.United States

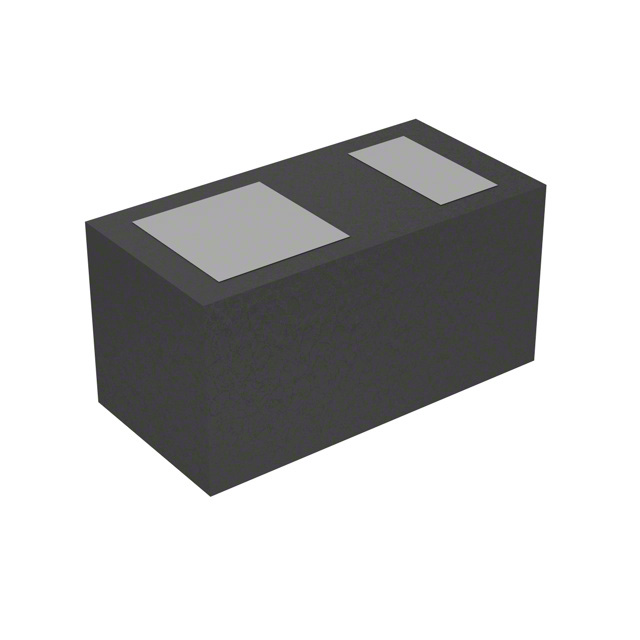

TVS DIODE 6VWM 15.6VC 0201
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage6 V
Breakdown voltage7 V
Clamping voltage15.6 VTyp
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | - |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 15.6V (Typ) |
| Voltage - Reverse Standoff (Typ) | 6V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201/DFN0603 |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Obsolete |
| Series | SP1009, SPA® |
| Type | Zener |
