Littelfuse Inc.United States

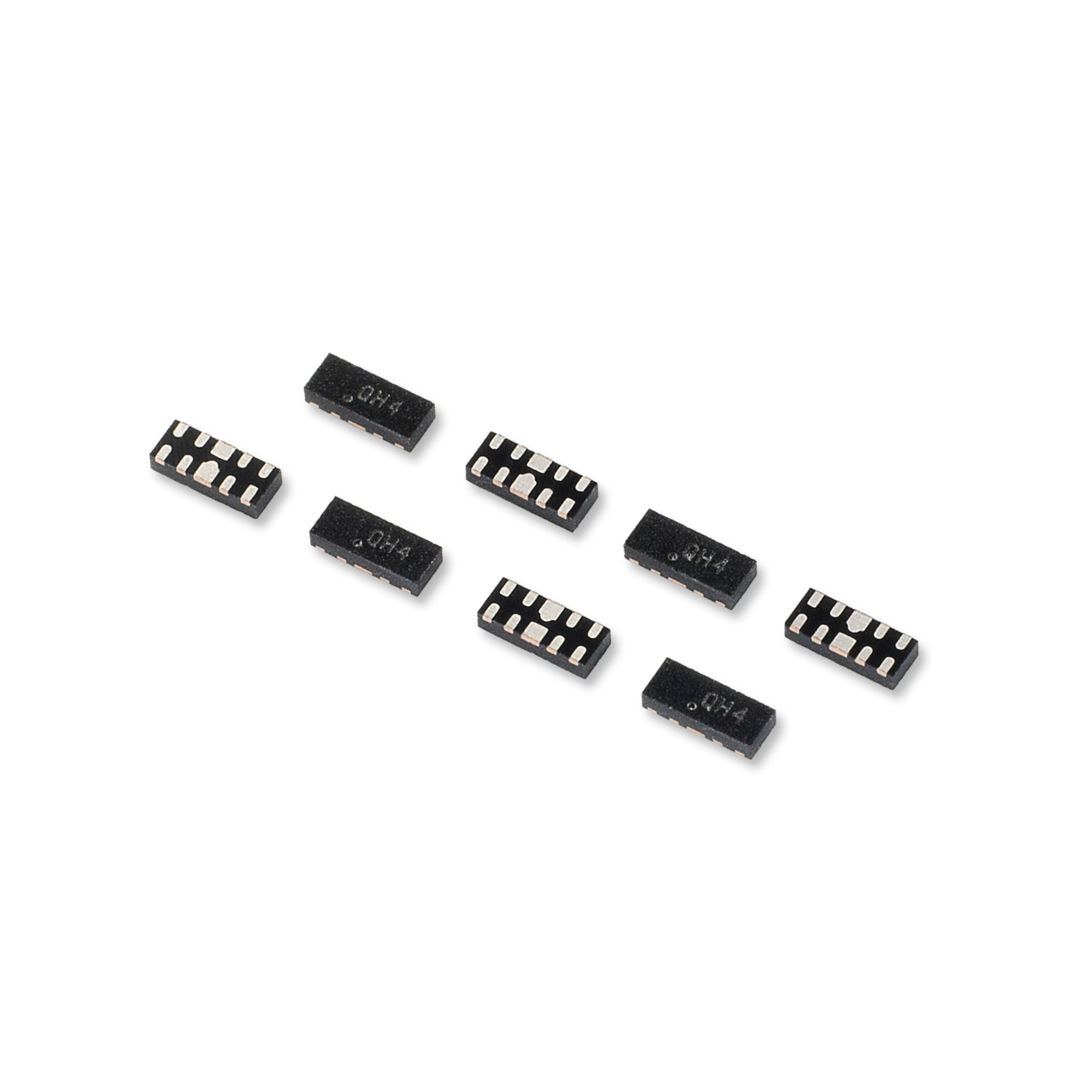

TVS DIODE 6VWM 12.3VC 10UDFN
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage6 V
Clamping voltage12.3 VTyp
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power Line Protection | Yes |
| Power - Peak Pulse | - |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 12.3V (Typ) |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 10-UFDFN |
| Supplier Device Package | 10-µDFN (2.5x1.0) |
| Other | |
| Applications | General Purpose |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | SP3010, SPA® |
| Type | Steering (Rail to Rail) |
