Signal TransformerUnited States

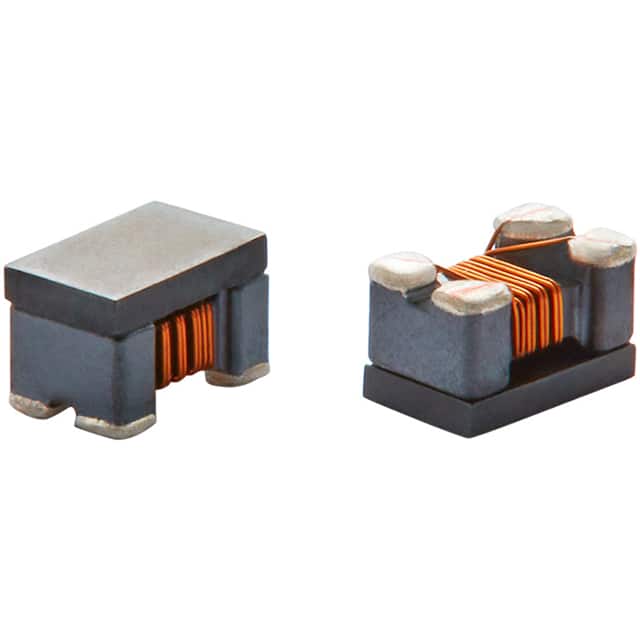

CHOKE CMC 2 LINE 120 OHM
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating350 mAMax
DC resistance300 mΩMax
Impedance120 Ω100 MHz
| Power | |
|---|---|
| Current Rating (Max) | 350mA |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| AC and DC characteristics | |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Environment and package | |
| Height (Max) | 0.087" (2.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Box (TB) |
| Package / Case | Horizontal, 4 PC Pad |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 300mOhm |
| Features | - |
| Filter Type | Signal Line |
| Mfr | Signal Transformer |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | AEC-Q200 |
| Series | - |
