TDK CorporationJapan

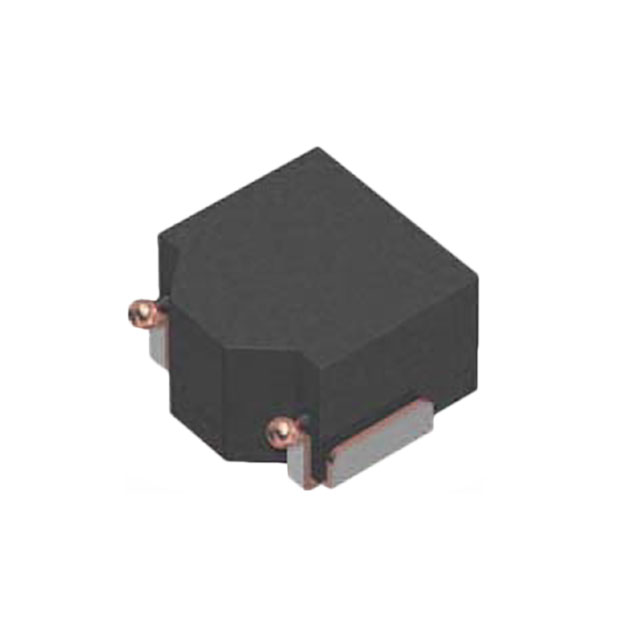

FIXED IND 10UH 2.3A 174.8MOHM SM
All alternatives
View full reportTechnical parameters
Key specs
Inductance10 µH
Rated current2.3 AMax
Saturation current3.4 AMax
DC resistance174.8 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | 3.4A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Other | |
| DC Resistance (DCR) | 174.8mOhm Max |
| Inductance | 10 µH |
| Material - Core | Metal |
| Mfr | TDK Corporation |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Series | SPM-LR |
| Shielding | Shielded |
| Tolerance | ±20% |
| Type | Drum Core, Wirewound |
