KnowlesUnited States

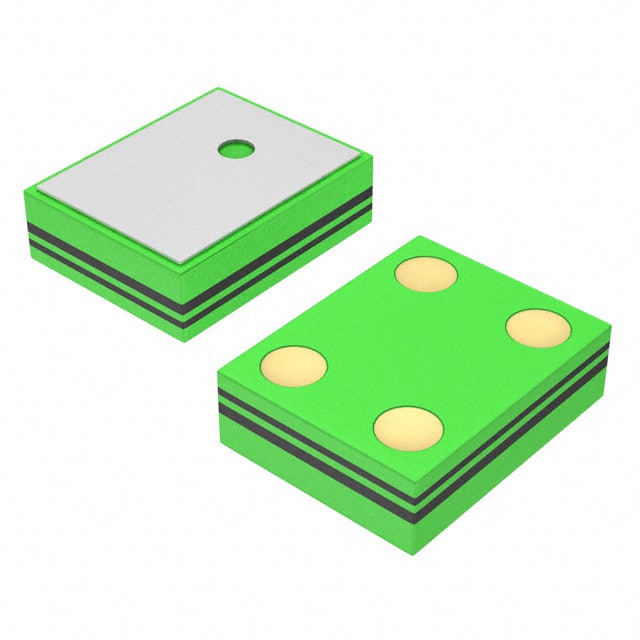

MICROPHONE MEMS ANALOG OMNI
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 190 µA |
| Voltage Range | 1.5 V ~ 3.6 V |
| AC and DC characteristics | |
| Frequency Range | 100 Hz ~ 10 kHz |
| Impedance | 300 Ohms |
| Environment and package | |
| Height (Max) | 0.047" (1.20mm) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

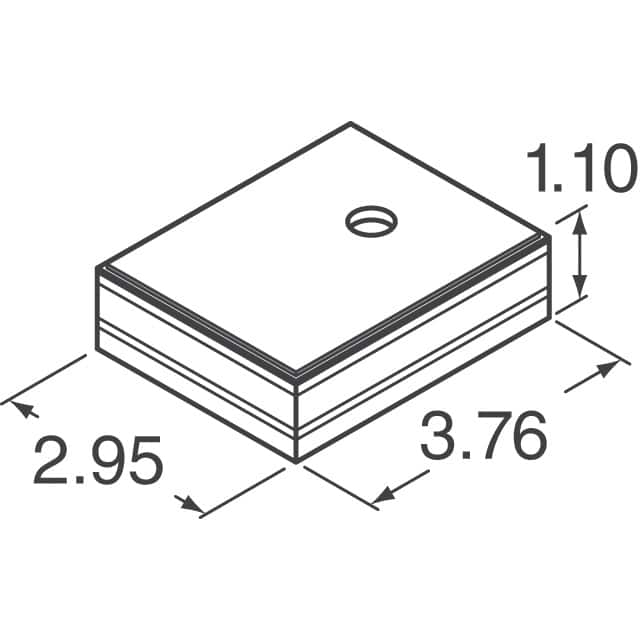

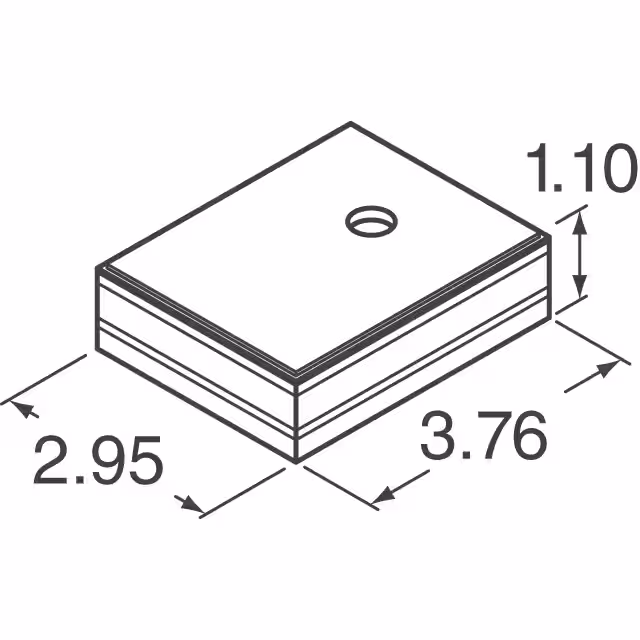

| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Other | |
| Direction | Omnidirectional |
| Mfr | Knowles |
| Output Type | Analog |
| Port Location | Top |
| Product Status | Obsolete |
| Sensitivity | -42dB ±3dB @ 94dB SPL |
| Series | SiSonic™ |
| Shape | Rectangular |
| S/N Ratio | 59dB |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
