GME(银河微电)China

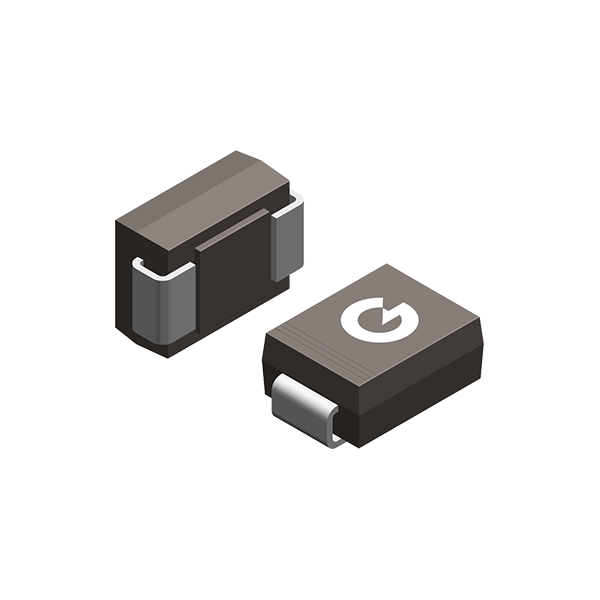

10A,100V, Surface Mount Schottky Barrier Rectifiers
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 最大反向漏电流 IR (μA) | 30 |
| 最大反向重复峰值电压 VRRM (V) | 100 |
| 最大正向电流 IF (A) | 10 |
| 最大浪涌电流 IFSM (A) | 200 |
| Environment and package | |
| REACH 合规 | YES |
| RoHS 合规 | YES |
| 封装 Package | SMB |
| Other | |
| AEC-Q 车规认证 | NO |
| 出口管制编码 ECCN | EAR99 |
| 无卤 Halide-free | YES |
| 无铅 Pb-free | YES |
| 最低结温 Tj min (℃) | -55 |
| 最大正向压降 VF (V) | 0.85 |
| 最高结温 Tj max (℃) | 150 |
| 生命周期 Marketing Status | Active |
| 结构 Configuration | Single |
