onsemiUnited States

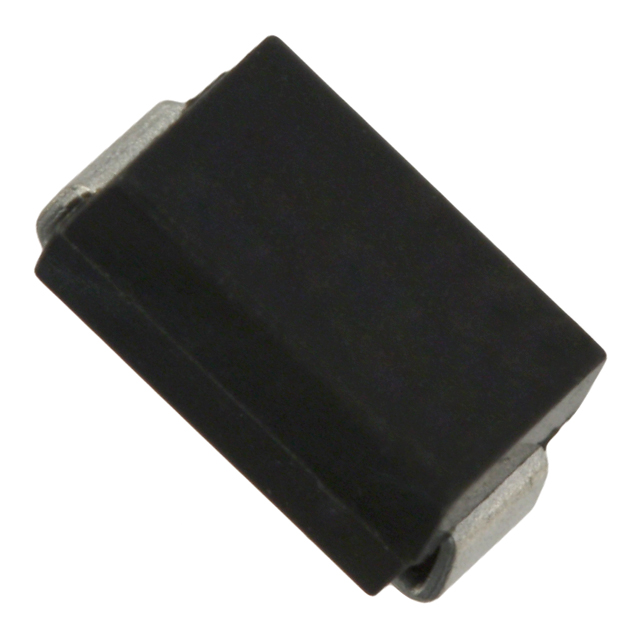

DIODE SCHOTTKY 60V 1A DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage60 V
Average rectified current1 A
Forward voltage700 mVMax · 1 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 1 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Base Product Number | SS16 |
| Capacitance @ Vr, F | - |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
